If ever EMC Disk Arrays KM for PATROL does not function properly (displays components as missing that you know are present, or does not detect several components as it should, etc.), it is possible to reinitialize the configuration and let the KM re-start monitoring from scratch. The above cases of malfunction can occur after a configuration change or especially after a software/hardware upgrade.
 A backup of the PATROL Agent configuration is always performed and saved in the $PATROL_HOME/config directory before a Reinitialization of the KM.
 The reinitialization options may be limited if you are using BMC ProactiveNet v.9.x to monitor your environment.
Reinitializing the KM
To reinitialize EMC Disk Arrays KM for PATROL:
| 1. | In the PATROL Console, right-click the KM main icon > KM Commands > Reinitialize KM...: |

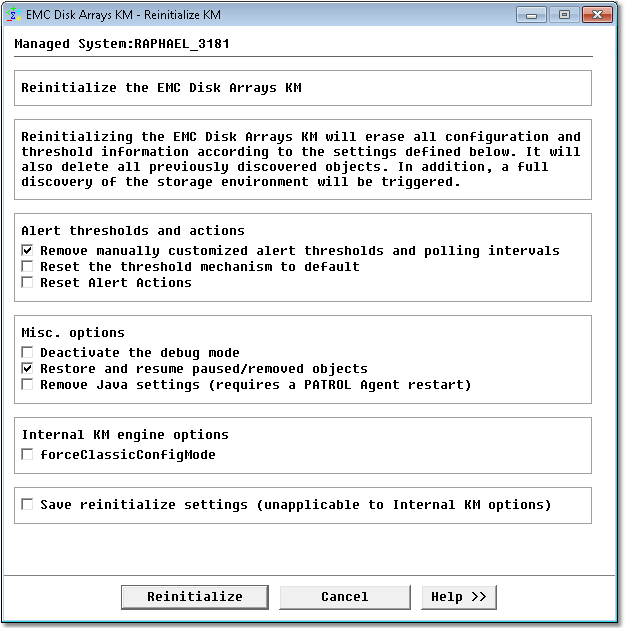

Reinitializing EMC Disk Arrays KM in Classic Mode
| 2. | Select the options as per your specific needs: |
Alert thresholds and actions
| ▪ | Remove manually customized alert thresholds and polling intervals: Selection removes all customized thresholds and polling intervals. |
| ▪ | Reset the threshold mechanism to default: Selection makes the KM revert to the default mode i.e. the mechanism best suited to the system. |
| ▪ | Reset Alert Actions: Selection removes all manually set Alert Actions and reverts to basic default actions i.e. Trigger a PATROL event and Annotate a parameter graph. |
Misc. options
| ▪ | Deactivate the debug mode: Selection deactivates the debug mode if manually enabled. |
| ▪ | Restore and resume paused/removed objects: Selection restores all paused or removed objects. |
| ▪ | Remove Java Settings: Selection removes the custom Java settings (path and credentials). The KM will try to automatically find a suitable JRE. |
Internal KM engine options (only appears when configurations have been manually set in the PATROL Agent)
| ▪ | forceClassicConfigMode: Selection forces the KM to run in Classic Mode. (Option available only if the KM is already running in CA mode) |
Save reinitialize settings
| ▪ | Save reinitialize settings: Selection saves the defined settings that will then be considered as default. |
