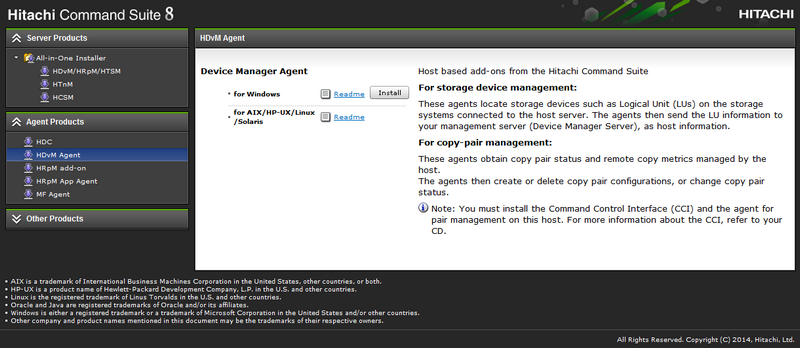

1. | Log into the Hitachi Command Suite Console: http://<IP_Address>:22015/DeviceManagerWebService/index.jsp |
![Installing Device Manager Agent-01](hmfile_hash_ea3468d8.png)

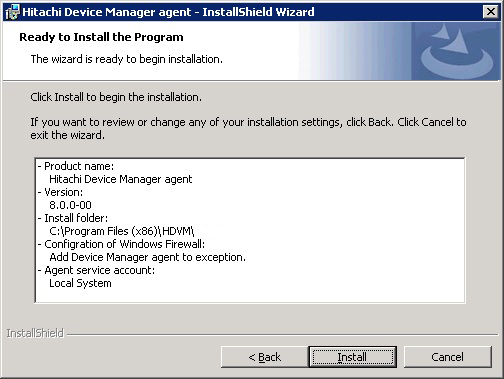

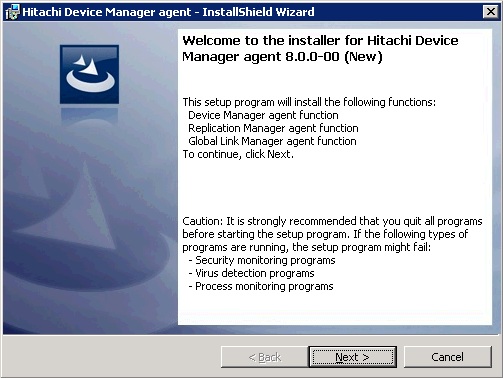

2. | Click Install to launch the Device Manager agent installer: |
![Installing the Device Manager Agent 1](hmfile_hash_4455d4ff.jpg)
![Installing the Device Manager Agent 2](hmfile_hash_2288adb6.jpg)

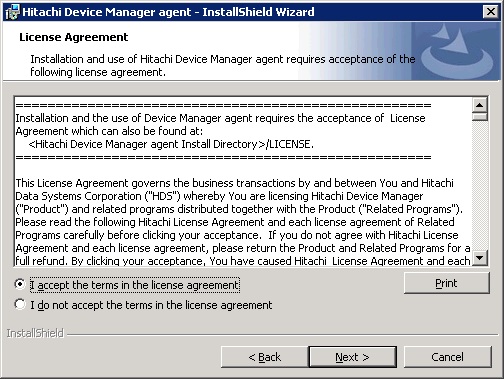

4. | Select the I accept the terms of the License Agreement option and click Next |
![Installing Device Manager Agent - 03](hmfile_hash_1a908c29.png)

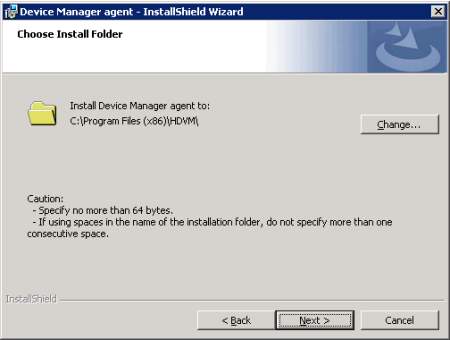

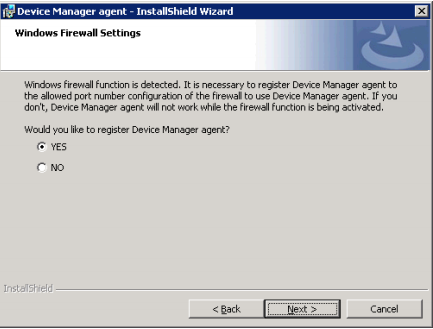

5. | Choose the install folder and click Next. A screen will appear to ask you permission to add a firewall exception even if your server’s firewall is not enabled: |
![Installing Device Manager Agent - 04](hmfile_hash_4e3725c5.png)
6. | Select YES and click Next. |
![Installing Device Manager Agent - 05](hmfile_hash_cfbeb767.png)

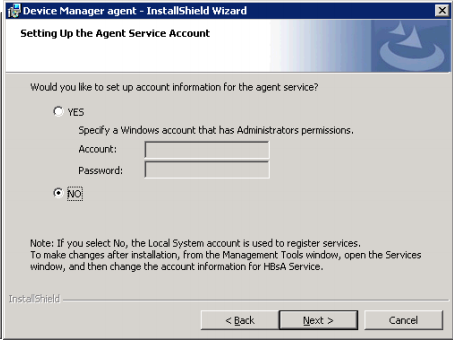

7. | Select the user account to be used for launching the agent service. Selecting NO will use the Local System Account (recommended). Click Next. |
![Installing the Device Manager Agent 3](hmfile_hash_423233d4.jpg)
![](embim1.jpg)

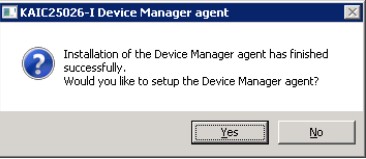

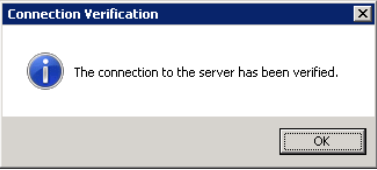

9. | When the installation is complete, click Yes to setup the Device Manager agent. The agent will then check connection to Device Manager (Hitachi’s Name for Command View Advanced Edition). |
![Configuring Device Manager Agent - 01](hmfile_hash_7b49a958.png)

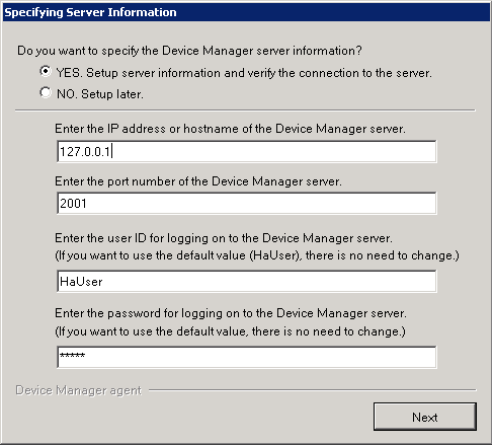

10. | Select YES to specify the Device Manager server Information, change the IP address to 127.0.0.1 and click Next. |
![Configuring Device Manager Agent - 02](hmfile_hash_1ad94cf6.png)

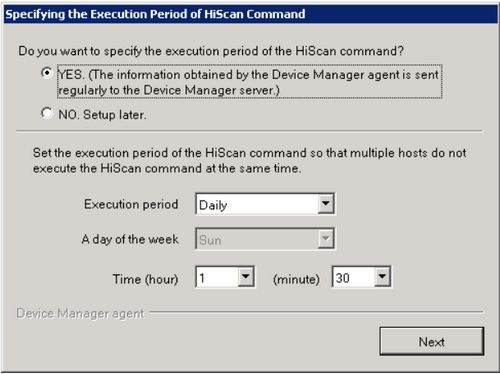

12. | Select YES to enable the Execution Period of the HiScan Command. Select pre-determined or random hour (do not use the default 2:30am) to prevent agent conflict. Click Next. |
![Installing the Device Manager Agent 4](hmfile_hash_42f950cf.jpg)

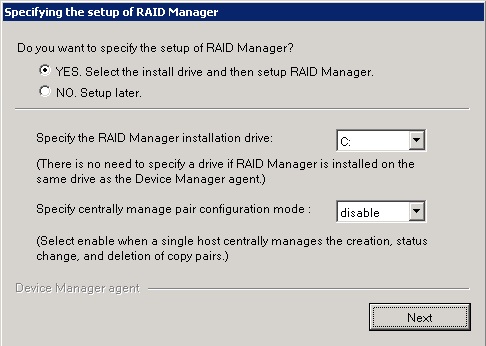

13. | Select NO in order not to set up the RAID Manager (it is not needed by Sentry / CVAE) and click Next. |

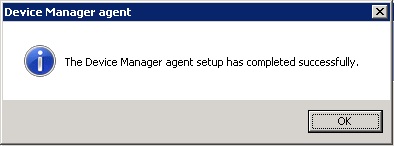

14. | A message "The Device Manager agent setup has completed successfully" appears. Click OK to finish the installation. |
![Installing the Device Manager Agent 5](hmfile_hash_25e98cef.jpg)
|
