Diagnosing Fiber Performance Issues

Each external data port is represented by a Host Port Statistics instance. The parameters of this class provide an accurate picture of the traffic on each fiber link. This will notably help administrators identify which port constitutes a bottleneck or diagnose 'multi-pathing' issues.

1.	Create a graph with the ReadByteRate and WriteByteRate parameters to visualize the traffic on each fiber port (host ports only). In the console, double-click a Controller's icon > Host Port Statistics > Fiber Ports > ReadByteRate to create a graph with the ReadByteRate value.

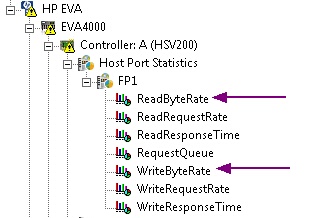

Tree_WriteDataRate

Selecting a Fiber Port's ReadByteRate and WriteByteRate Parameters

2.	Select the WriteByteRate parameter and drag it from the tree view to the graph. The second parameter is automatically added to the first one to facilitate the comparison of the fiber port performance.

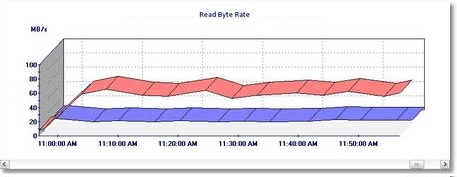

GRAPH_WriteDataRate

Comparing a Fiber Port's ReadByteRate and WriteByteRate Parameters
