If you select the Send a basic SNMP trap action:

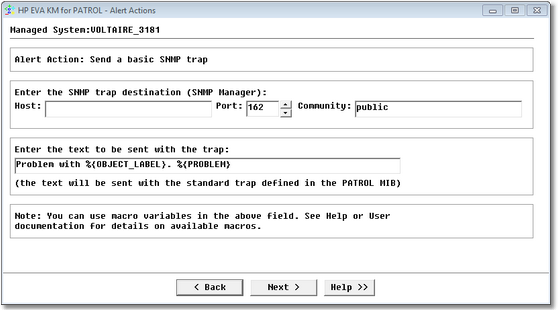

Editing Alert Actions — Alert Action: Send a Basic SNMP Trap
Enter the following:
| • | IP address or hostname of the SNMP trap destination |
| • | SNMP port and community string |
| • | Text that will be sent in the SNMP trap |
 Upon a failure, HP EVA KM for PATROL will send the trap that is defined in the PATROL MIB (Trap number 11, Enterprise ID: 1.3.6.1.4.1.1031.1.1.2, the text is stored in the 1.3.6.1.4.1.1031.1.1.2.1 OID). You can use macros that will be replaced at runtime. The Alert Actions Macro Variables section states the list of available macros.
