Synergy with Hardware Sentry KM for PATROL

To benefit from a complete monitoring of your HP EVA disk arrays, HP EVA KM for PATROL needs to be used in conjunction with Hardware Sentry KM for PATROL.

•	Hardware Sentry KM for PATROL discovers all the physical components, that is: logical and physical disks, RAIDs, power supplies, fans, temperatures sensors, blades, memory modules ,network cards, batteries, and reports hardware failures on these components.

•

HP EVA KM for PATROL monitors all of the performance metrics and usage statistics of your disk arrays, such as disk space usage, storage controller utilization, I/Os on the disks/controllers, etc. It continuously monitors the activity of each disk array and is also able to build reports on past utilization statistics.

The complete storage monitoring solution architecture is composed of the elements represented in the illustration below.

Architecture

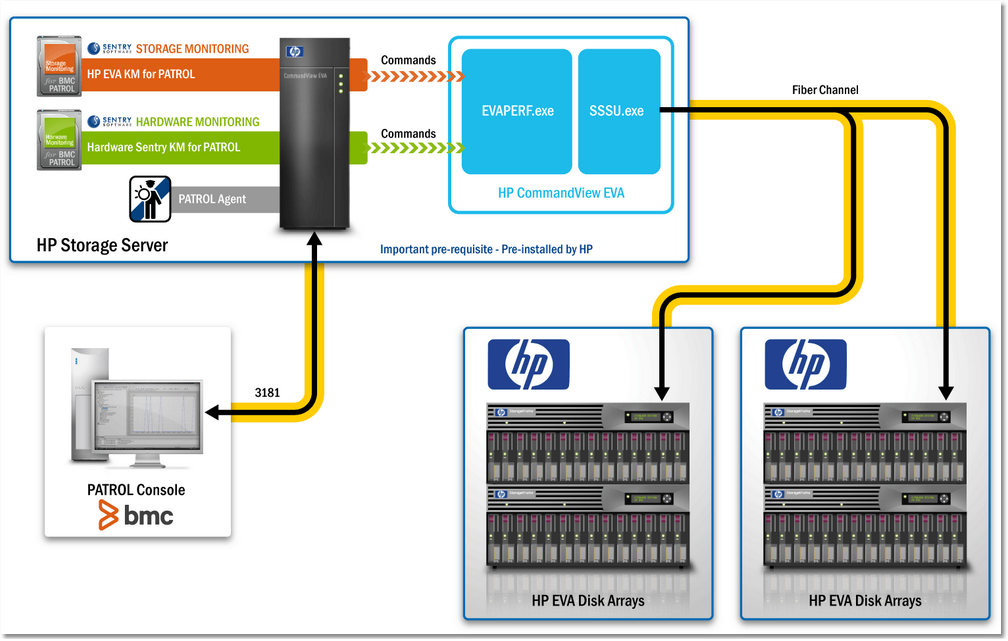

The complete storage monitoring solution architecture is composed of the elements represented in the illustration below:

architecture-hpeva-km

HP EVA KM for PATROL – Architecture
