Configuring Java Settings

The Java Settings wizard enables you to define which Java instance is to be used by IBM DS6000, DS8000 Series KM for PATROL (only when using the version lower than 3.6.0.11 of PATROL agent).

You can either use the automatic detection, select a pre-detected java path or enter manually the path leading to the Java executable directory to be used.

The minimum version required is Java 1.5

To access the Java Settings wizard, right-click the main KM icon > KM commands > KM Settings > Java Settings.

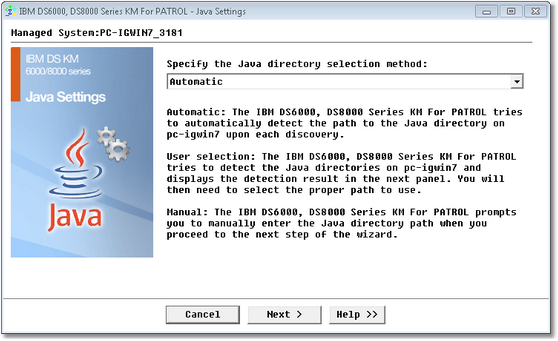

Java Settings Wizard — Method Selection

Select the Java executable detection method: Select one of the three following options:

•Automatic: Select this option if you wish the KM to detect the Java executable directory by itself upon each discovery.

•User selection: Select this option if you wish to select a Java executable directory within a list of pre-detected executables.

•Manual: Select this option if you wish to manually enter the Java executable directory path.

Click Next to continue.

Automatic Detection

If you have selected the automatic detection at the previous step of the wizard, the KM displays the path of the Java executable directory that will be used when performing commands requiring Java features.

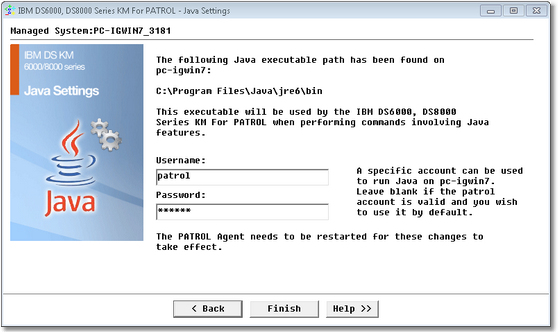

Java Settings Wizard — Automatic Detection

If needed, specify a different Username and Password to run Java. Leave the fields blank to use the default PATROL account to run Java.

Click Finish to save your settings.

User Selection

If you have selected the user selection option at the previous step of the wizard, the KM displays a list of all the Java executable directory found on your machine:

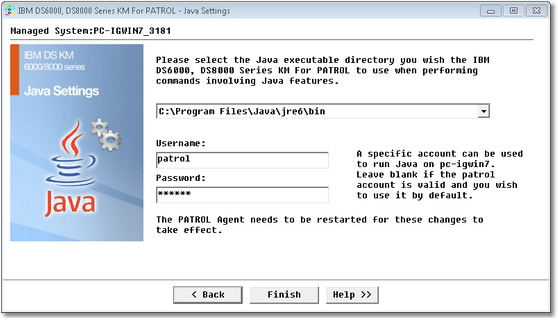

Java Settings Wizard — User Selection

1.Select the Java executable directory you wish the KM to use when performing commands requiring Java features

2.If needed, specify a different Username and Password to run Java. Leave the fields blank to use the default PATROL account to run Java

3.Click Finish to save your settings.

Manual

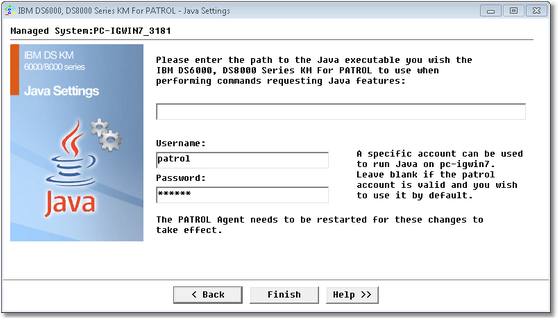

Java Settings Wizard — Manual Settings

If you have selected the Manual option at the previous step of the wizard:

1.Enter the path to the Java executable directory you wish the application to use when performing commands requiring Java features

2.If needed, specify a different Username and Password to run Java. Leave the fields blank to use the default PATROL account to run Java

3.Click Finish to save your settings.

Once you have modified a java setting, you must restart the PATROL in order to make your changes.
