LUNs Mapping Table

In order to facilitate the servers management, administrators can use the LUNs Mapping Table to list: mapped and/or not mapped LUNs.

1.In the console, right-click the KM main icon > KM Commands > Reporting > LUNs Mapping Table

2.Define the setting of the list you wish to create

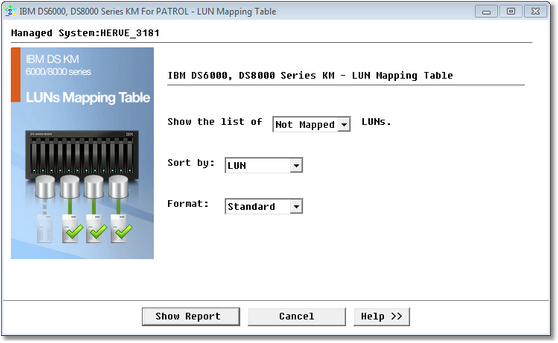

Table Parameters Settings

•Select the type of logical drive you wish the list to display: Not mapped, mapped or all

•Select the sorting order: Storage Unit, LUN, Size, Host Group, Host, Host WWN, FC Ports

•Select the format: Standard or CSV

3.Click Show Report to display a list of LUNs corresponding to your requirements
