Reinitializing the KM

 Home  Previous  Next

It is possible to reinitialize the KM if IBM DS6000, DS8000 Series KM for PATROL does not function properly after a configuration change or a software/hardware upgrade. Reinitializing the KM will reinitialize the configuration and let IBM DS6000, DS8000 Series KM restart the monitoring of existing and new components. Thresholds will be set to default so all previously manually set thresholds will be lost, unless specified otherwise in the Reinitialize KM setting window shown below.

noteA backup of the PATROL Agent configuration is always performed and saved in the $PATROL_HOME/config directory before a Reinitialization of the KM.

1.To reinitialize IBM DS6000, DS8000 Series KM for PATROL: Right-click the KM Icon > KM Commands > Reinitialize KM

2.In the settings window, select the options according to your specific needs.

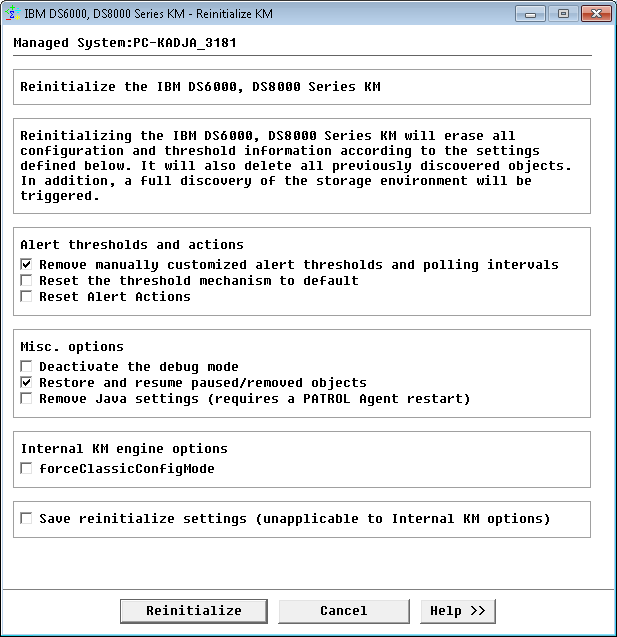

KMCmd_Reinitialize

Setting the Reinitialize Options

Alert thresholds and actions

▪Remove manually customized alert thresholds and polling intervals: removes all customized thresholds and reset polling intervals to default.

▪Reset the threshold mechanism mode to default: makes the KM revert to the default mode i.e. IBM DS6000, DS8000 Series KM for PATROL selects the mechanism that best suits the system.

▪Reset Alert Actions: removes all manually set Alert Actions and reverts to basic default actions i.e. Trigger a PATROL event and Annotate a parameter graph.

▪Reset other alert and threshold settings: reverts any manually done configuration changes to the default KM values.

Misc. options

▪Deactivate the debug mode: Selection deactivates the debug mode if manually enabled.

▪Restore and resume paused/removed objects: Selection restores all paused or removed objects.

▪Remove Java Settings: Selection removes the custom Java Settings (path and credentials). The KM will try to automatically find a suitable JRE

Internal KM engine options

▪ForceClassicConfigMode: Selection forces the KM to run in Classic Mode. (Option available only if the KM is already running in CA mode).

Save reinitialize settings

▪Save reinitialize setting: Selection saves the defined settings that will then be considered as default.

NoteIn cases where configurations have been manually set in the PATROL Agent, there will be an additional section called Internal KM engine options displaying the used configuration variables and the option whether or not to remove them.

3.Click Reinitialize.
