Search WWN/IQN

Every component is uniquely identified on the SAN with an obfuscated series of letters and digits named WWN or IQN. Because WWN are a series of letters and digits and IQN can be up to 255 characters long, retrieving a device or port corresponding to a WWN or IQN found in error logs or any other administration GUI is a nightmare for SAN administrators. The Search WWN/IQN feature has been designed to easily find any component based on its complete or partial World Wide Name or IQN.

1.In the console, click the KM Icon > KM Commands > Search WWN/IQN.

2.Select a search option, Contains, Start with, or Ends with.

3.Type the value to search for.

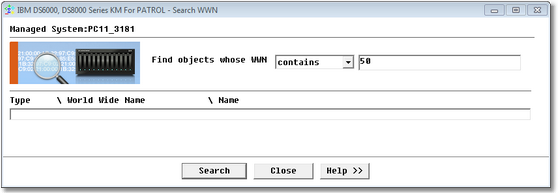

Search WWN Setting Panel

4.Click Search to display the search results

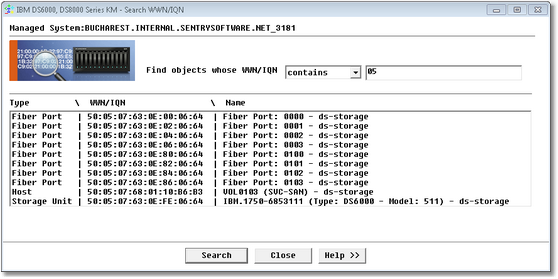

Search WWN Results

5.The search results panel lists the WWN/IQN corresponding to the search options you have defined.
