To add a connection to an EMC SMI-S provider:

1.	Right-click the KM Main Icon > KM Commands > Add a Connection to an EMC SMI-S Provider...

2.	Define the provider information:

▪	Enter the server host name

▪	Enter the IP address or the fully qualified name.

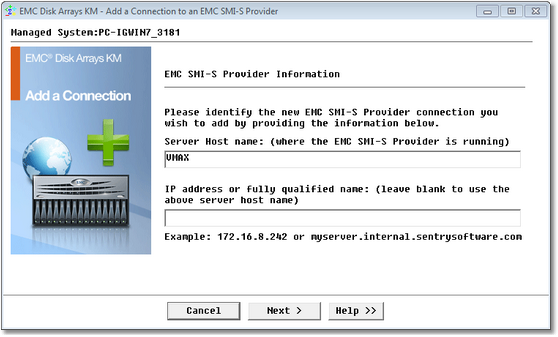

Cmd_Add_Connection_to_EMC

Adding a connection to a SMI-S Provider

3.	Click Next.

4.	Define the WBEM Credentials:

▪	Enter the Port number that will be used for the connection to the CIM server.

▪	Check the Encrypt data using HTTPS protocol box to turn on the encryption when performing WBEM queries, if necessary.

▪	Enter the Login and Password that will be used for the connection to the CIM server. When the login and password are left blank the default PATROL credentials will automatically be used for the connection.

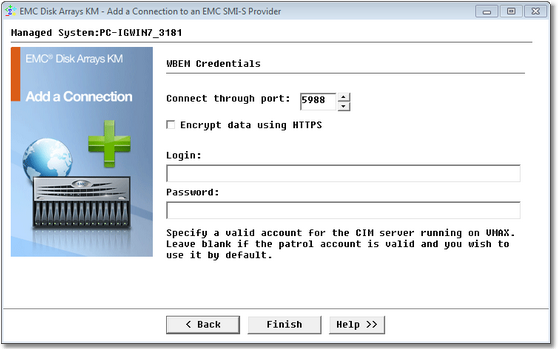

Cmd_Add_Connection_To_EMC2

Adding a connection to a SMI-S Provider - WBEM Credentials

5.	Click Finish to save your settings.
