Editing Connection Settings

 Home  Previous  Next

To edit connection settings:

1.Right-click the EMC SMI-S provider icon > KM Commands > Edit Connection Settings.
2.Modify the IP address settings:

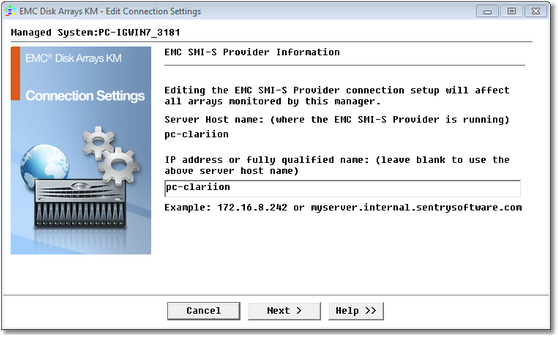

Cmd_Edit_Connection1

Edit Connection Settings

3.Click Next.
4.Edit the WBEM Credentials:
▪Enter the Port number that will be used for the connection to the CIM server.
▪Check the Encrypt data using HTTPS box to turn on the encryption when performing WBEM queries.
▪Enter the Login and Password that will be used for the connection to the CIM server. When the login and password are left blank the default PATROL credentials will automatically be used for the connection.

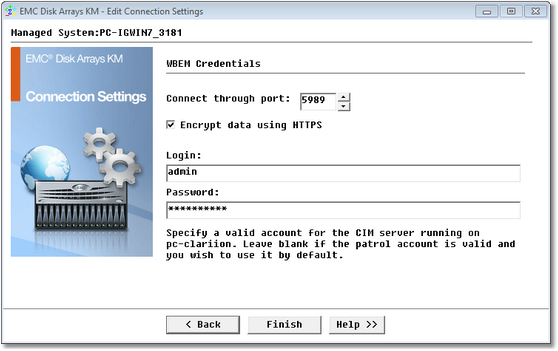

Cmd_Edit_Connection2

Editing an EMC SMI-S Provider  - WBEM Credentials

5.Click Finish to save your settings.
