Disk Arrays Activity

EMC Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored disk arrays:

1.	Right-click the KM main icon > KM Commands > Reporting > Disk Arrays Activity to access the report settings dialog box

Cmd_Report_Disk_Array

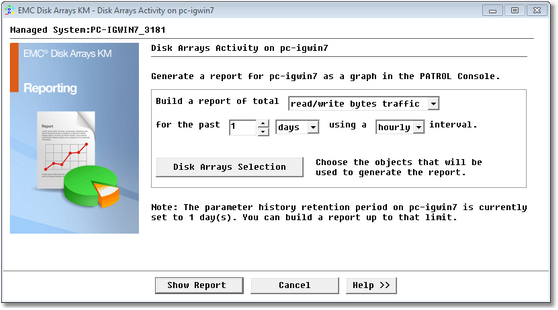

Disk Arrays Activity - Report Parameter Selection

2.	Select the parameter for which you wish to generate a report for:

▪	read bytes traffic

▪	write bytes traffic

▪	read/write bytes traffic

3.	Select the report range and interval

4.	Press the Disk Arrays Selection button and select the specific disk array(s) you wish to include in the report

5.	Click Show Report.

GRAPH_Array

Disk Arrays Activity

You can generate a report directly from a specific disk:

1.	Click the physical disk > KM Commands > Physical Disk Activity.

2.	Select the parameter for which you wish to generate a report for:

▪	transfer bytes traffic

▪	write bytes traffic

▪	read bytes traffic

▪	read/write bytes

3.	Select the report range and interval

4.	Click Show Report.
