EMC Disk Arrays KM for PATROL enables you to generate a report for one or several of the fiber ports:
1. | Right-click the KM main icon > KM Commands > Reporting > Fiber Ports Activity to access the report settings dialog box |

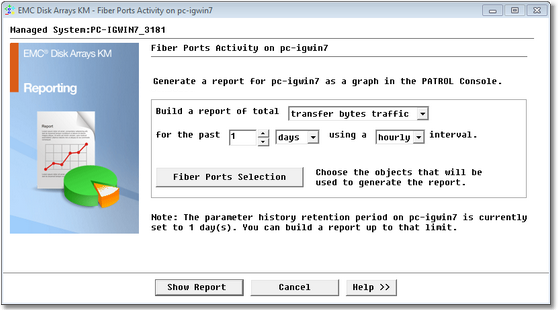

Defining Report Settings
2. | The transfer bytes traffic parameter is automatically selected |
3. | Select the report range and interval |
4. | Press the Fiber Ports Selection button and select the specific Fiber Port(s) you wish to include in the report. Click Accept to continue. |

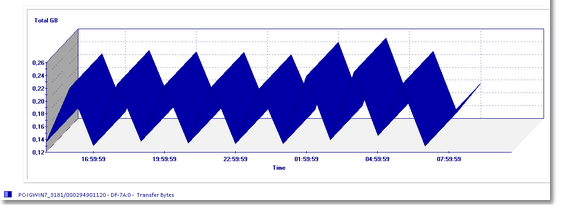

5. | Click Show Report to display a report for the selected port(s) according to the parameters you have defined. |
You can also easily generate a report directly from a specific fiber port:
1. | Click the Fiber Port instance > KM Commands > Fiber Port Activity. |
2. | Select the report range and interval |

Fiber Port Activity
|
