EMC Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored volumes:
| 1. | Right-click the KM main icon > KM Commands > Reporting > Volumes Activity... |

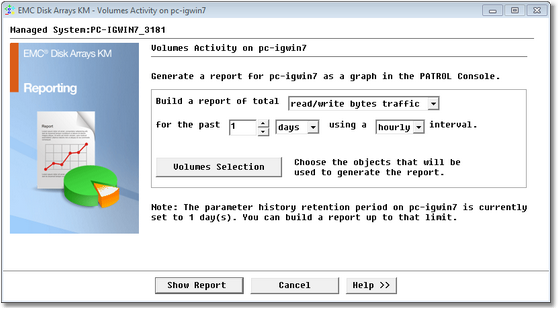

Volumes Activity - Report Parameter Selection
| 2. | Select the parameter for which you wish to generate a report for: |
| ▪ | read/write bytes traffic |
| 3. | Select the report range and interval |
| 4. | Press the Volumes Selection button and select the specific volume(s) you wish to include in the report. Click Accept. |

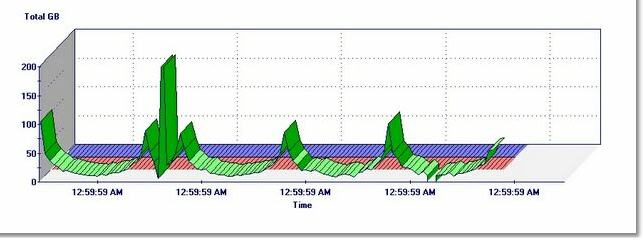

Volumes Activity
You can generate a report directly from a specific volume:
| 1. | Click the volume instance > KM Commands > Volume Activity... |
| 2. | Select the parameter for which you wish to generate a report for: |
| ▪ | read/write bytes traffic |
| 3. | Select the report range and interval |
|
