Configuring Monitor Settings

The configuration of Monitor Types is performed through policies. Policies enable you to deploy configurations on PATROL Agents and monitoring solutions, such as Hitachi Storage Monitoring in an automated way. Policies are designed to define and configure monitoring criteria and apply them to selected PATROL Agents. The configuration criteria are automatically pushed to the PATROL Agents on which the policy is applied. When a monitoring policy is applied to a PATROL Agent, the device is automatically added to the list of monitored devices.

To create a monitoring policy

1.	Log on to the TrueSight console.

2.	In the navigation pane, expand Configuration and select Infrastructure Policies.

3.	In the Infrastructure Policies page, ensure that the Monitoring tab is selected and click Create Policy.

4.	In the Create Monitoring Policy page, specify the monitoring policy properties:

Step 1 - Define the General Properties

Property	Description
Name	Name for the policy. The policy names must be unique. In an environment with tenants, the policy names must be unique for a single tenant. It is a mandatory field.
Description	(Optional) A brief description about the policy.
Associated User Group	Name of the user group that is associated with the PATROL Agents as defined in the Authorization Profile or in the PATROL Agent ACLs. The policy is applicable to these PATROL Agents.
Share with User Group	Specify whether this policy is to be shared with the users across the associated user group or not. This property can be viewed in READ-ONLY mode by other users of the associated user group. Only the owner of the policy can modify this property.
Precedence	Priority of the policy. Based on the precedence number that you configure, the configuration is applied to the PATROL Agents and the Infrastructure Management servers. The precedence number ranges from 0 to 999. A lower number indicates a higher precedence. The default value is 900. The configuration from a policy with a higher precedence overrides the configuration from a policy with a lower precedence. If two policies have the same precedence number, then the configuration from the latest created policy takes priority.
Enable Policy	Indicates whether the policy is enabled or disabled. By default, the policy is enabled. If you disable a policy when you create it, the policy configurations are not applied to the PATROL Agents and the Infrastructure Management Servers. If you disable any existing policy, the policy configurations are removed from the PATROL Agents and the Infrastructure Management servers, where the policy was applied.

Step 2 - Select the PATROL Agents

Define conditions to select the PATROL Agents on which you want to apply the policy:

1.	Select a property.

2.	Select an operator to create the condition. The available operators depend on the property that you select.

3.	Specify a value for the selected property.

4.	(Optional) To add more than one condition, click the button, and perform the earlier steps.

5.	(Optional) To group the conditions, use the parentheses and Boolean operators from their corresponding lists.

The Add Monitor Types dialog box presents configuration fields for compatible BMC PATROL monitoring solutions that are located in the Central Monitoring Repository.

Step 3 - Select the Hitachi Storage Monitor Type

1.	Click the Monitoring tab.

2.	Click Add Monitoring Configuration.

3.	In the Add Monitoring Configuration dialog box, configure the properties:

▪	From the Monitoring Solution menu, select Hitachi Storage.

▪	From the Version menu, select the required version.

▪	The Monitor Profile is automatically selected.

Step 4: Add a Monitoring Configuration

1.	In the Hitachi Storage Configuration section, click Add to open the Embedded SMI-S Provider/Hitachi Device Manager settings panel.

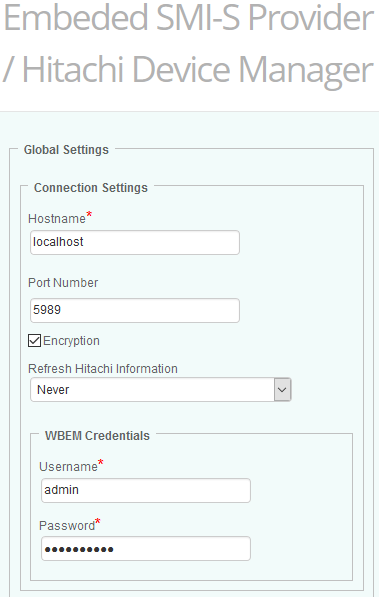

105_HDS_Global_Settings

Embedded SMI-S Provider/Hitachi Device Manager Global Settings

2.	In the Global Settings section, define the Connection Settings to access the Embedded SMI-S Provider/Hitachi Device Manager:

▪	Hostname: hostname of the system where the Embedded SMI-S Provider/Hitachi Device Manager is running

▪	Port Number: By default, the Embedded SMI-S Provider/Hitachi Device Manager runs on port 5989 when the encryption option is enabled, or on port 5988 when the encryption is disabled.

▪	Encryption: Select this option to encrypt the connection.

▪	Enter the WBEM Credentials that will be used to connect to the Embedded SMI-S Provider/Hitachi Device Manager.

In the Refresh Hitachi Information section, indicate how often the Hitachi Information will be refreshed (Never, Every Hour, or Once A Day). This automatic refresh is required to make sure that configuration changes are taken into account by Hitachi Device Manager. Note that refreshing the Embedded SMI-S Provider/Hitachi Device Manager is resource intensive and time consuming.

4.	(Optional) - Customize the following settings:

▪	Discovery and Polling Intervals

▪	Volume Monitoring Conditions

▪	Discovery and Collect Timeout

5.	Click OK to save your settings.

Step 5: Configure other settings

1.	From the Add Monitoring Configuration panel, you can perform the following operation:

▪	Enable/disable the debug mode

▪	Manage configuration variables

▪	Schedule automatic reports

▪	Configure global alert actions

2.	Click OK to validate.

To edit a monitoring policy

1.	Log on to the TrueSight console.

2.	In the navigation pane, expand Configuration and select Infrastructure Policies.

3.	In the Infrastructure Policies page, locate the monitoring policy you wish to modify, click its action button and click Edit.

4.	In the Edit Monitoring Policy page, locate the monitoring configuration you wish to modify and click its action button to access the monitoring options panel.

5.	Customize the configuration.

6.	Click Save to apply your changes to the selected PATROL Agent(s).
