Physical Disks Activity

HP EVA KM for PATROL enables you to generate a report for the monitored physical disks:

1.	Click the HP EVA icon or the Node instance > KM Commands > Reporting > Physical Disks Activity...

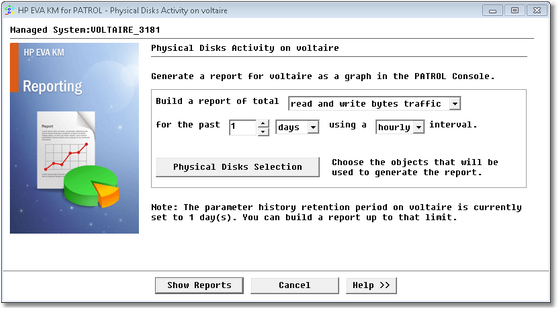

Report_Physical_Disks

Physical Disks Activity Report - Report Parameter Selection

2.	Select the parameter for which you wish to generate a report for:

▪	read bytes traffic

▪	write bytes traffic

▪	read/write bytes traffic

3.	Select the report range and interval.

4.	Select the specific physical disk(s) you wish to include in the report.

5.	Click Show Reports.

You can generate a report directly from a specific disk:

1.	Click the Physical Disk icon > KM Commands > Physical Disk Activity...

2.	Select the parameter for which you wish to generate a report for:

▪	read bytes traffic

▪	write bytes traffic

▪	read/write bytes traffic

3.	Select the report range and interval.

4.	Click Show Reports.
