In order to facilitate the servers management, administrators can use the Virtual Disks Mapping Table to list: mapped and/or not mapped virtual disks
| 1. | Click the HP EVA icon or the Node instance > KM Commands > Reporting > Virtual Disks Mapping Table... |

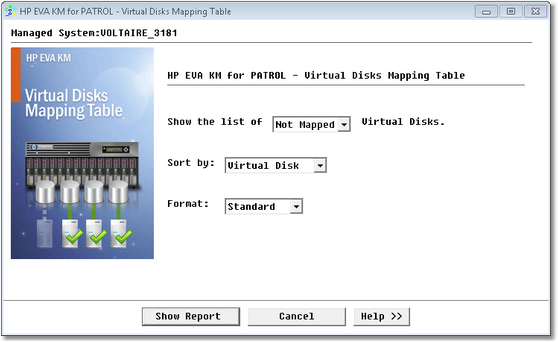

Accessing the Virtual Disk Mapping Table settings
| 2. | Define the setting of the list you wish to create |
| • | Select the type of virtual disks you wish the list to display: Not mapped, mapped or all. |
| • | Select the sorting order: Virtual Disk, Host Name, Host WWN, Size or Node. |
| • | Select the format: Standard or CSV. |
| 3. | Click Show Report to display a list of virtual disks corresponding to your requirements. |

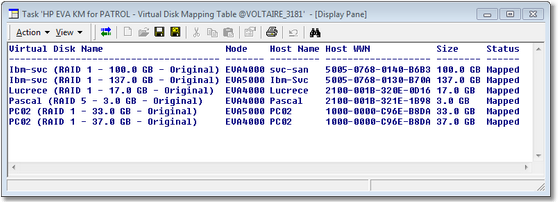

Virtual Disk Mapping Table
|
