Virtual Disk Groups Activity

HP EVA KM for PATROL enables you to generate a report for the monitored virtual disk groups:

1.	Click the HP EVA icon or the Node instance > KM Commands > Reporting > Virtual Disk Groups Activity...

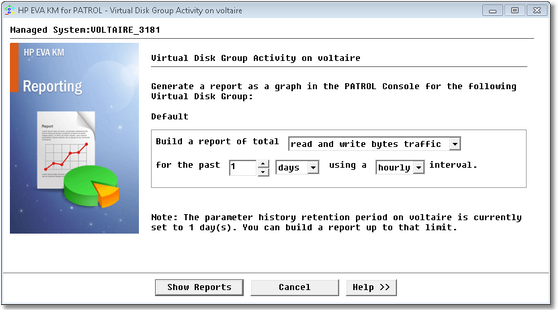

Report_Virtual_Disk_Group

Virtual Disk Groups Activity Report - Report Parameter Selection

2.	Select the parameter for which you wish to generate a report for:

▪	read bytes traffic

▪	write bytes traffic

▪	read/write bytes traffic

3.	Select the report range and interval.

4.	Select the specific virtual disk group(s) you wish to include in the report.

5.	Click Show Reports.

You can generate a report directly from a specific disk:

1.	Click the Virtual Disk Groups icon > KM Commands > Virtual Disk Group Activity...

2.	Select the parameter for which you wish to generate a report for:

▪	read bytes traffic

▪	write bytes traffic

▪	read/write bytes traffic

3.	Select the report range and interval.

4.	Click Show Reports.
