HP EVA KM for PATROL enables you to generate a report for the monitored virtual disks:
| 1. | Click the HP EVA icon or the Node instance > KM Commands > Reporting > Virtual Disks Activity... |

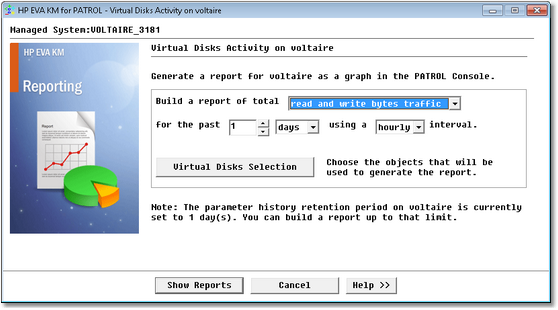

Virtual Disk Activity Report - Report Parameter Selection
| 2. | Select the parameter for which you wish to generate a report for: |
| ▪ | read/write bytes traffic |
| 3. | Select the report range and interval. |
| 4. | Select the specific virtual disk(s) you wish to include in the report. |
You can generate a report directly from a specific disk:
| 1. | Click the Virtual Disks icon > KM Commands > Virtual Disk Activity... |
| 2. | Select the parameter for which you wish to generate a report for: |
| ▪ | read/write bytes traffic |
| 3. | Select the report range and interval. |
|
