Configuring Java Settings

The Java Settings wizard enables you to define which Java instance is to be used by IBM DS3000, DS4000, DS5000 Series KM for PATROL for managing the E-mail alert action only when using a lower version than 3.6.0.11 of PATROL agent.

You can either use the automatic detection, select a pre-detected java path or enter manually the path leading to the Java executable directory to be used.

To access the Java Settings wizard, right-click the main KM icon > KM commands > KM Settings > Java Settings...

KMCmd_JavaSettings

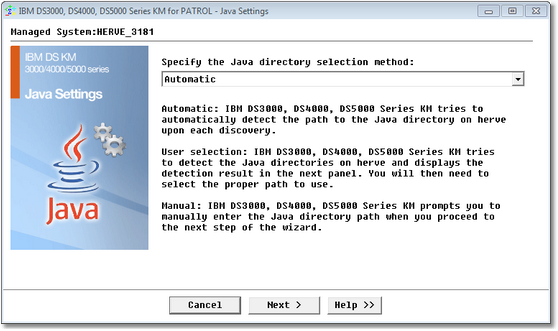

Java Settings Wizard — Method Selection

Select the Java executable detection method: Select one of the three following options:

•	Automatic: Select this option if you wish IBM DS3000, DS4000, DS5000 Series KM for PATROL to detect the Java executable directory by itself upon each discovery.

•	User Selection: Select this option if you wish to select a Java executable directory within a list of pre-detected executables.

•	Manual: Select this option if you wish to manually enter the Java executable directory path.

Click Next to continue.

Automatic Detection

If you have selected the automatic detection at the previous step of the wizard, IBM DS3000, DS4000, DS5000 Series KM for PATROL displays the path of the Java executable directory that will be used when performing commands requiring Java features.

KMCmd_JavaSettings_Auto

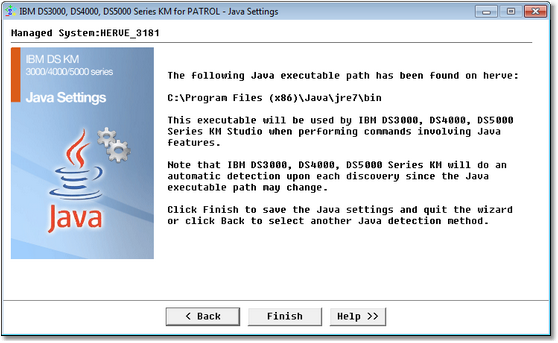

Java Settings Wizard — Automatic Detection

Click Finish to save your settings.

User Selection

If you have selected the user selection option at the previous step of the wizard, IBM DS3000, DS4000, DS5000 Series KM for PATROL displays a list of all the Java executable directory found on your machine.

KMCmd_JavaSettings_User

Java Settings Wizard — User Selection

Select the Java executable directory you wish IBM DS3000, DS4000, DS5000 Series KM for PATROL to use when performing commands requiring Java features and click Finish to save your settings.

Manual

If you have selected the Manual option at the previous step of the wizard, IBM DS3000, DS4000, DS5000 Series KM for PATROL let you enter the path to the Java executable directory you wish the application to use when performing commands requiring Java features.

KMCmd_JavaSettings_Manual

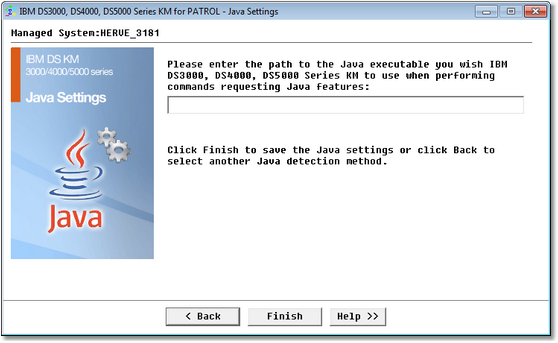

Java Settings Wizard — Manual Settings

Click Finish to save your settings.
