Ranks Activity Report

IBM DS6000, DS8000 Series KM for PATROL enables you to generate a report for one or several of the monitored ranks:

1.Click the KM main icon > KM Commands > Reporting > Ranks Activity

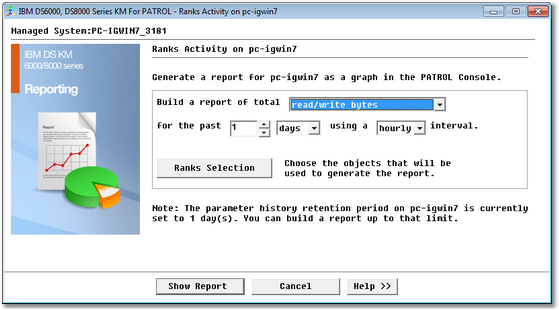

Configuring the Report Settings

2.Select the parameter for which you wish to generate a report:

▪read bytes,

▪write bytes, or

▪read/write bytes.

3.Select the report range and interval

4.Press the Ranks Selection button and select the specific rank(s) you wish to include in the report

5.Click Show Report.

You can generate a report directly from a specific rank:

1.Right-click the Rank icon > KM Commands > Rank Activity.

2.Select the parameter for which you wish to generate a report for:

▪read bytes

▪write bytes

▪read/write bytes

3.Select the report range and interval

4.Click Show Report.
