Send a Basic SNMP Trap

If you select the Send a basic SNMP trap action:

KMCmd_Alert_Actions_SNMP

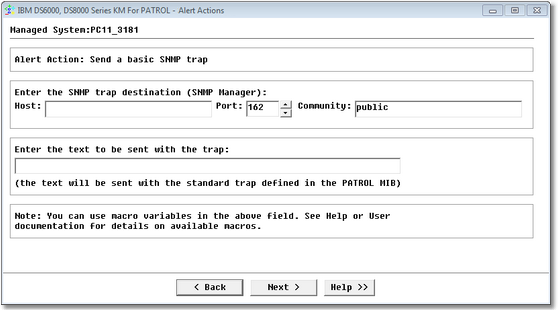

Editing Alert Actions — Alert Action: Send a Basic SNMP Trap

Enter the following:

•IP address or Hostname of the SNMP trap destination

•SNMP port and community string

•Text that will be sent in the SNMP trap

Upon a hardware failure, IBM DS6000, DS8000 Series KM for PATROL will send the trap that is defined in the PATROL MIB (Trap number 11, Enterprise ID: 1.3.6.1.4.1.1031.1.1.2, the text is stored in the 1.3.6.1.4.1.1031.1.1.2.1 OID). You can use macros that will be replaced at runtime. The Alert Actions Macro Variables section states the list of available macros.
