Trigger a PATROL Event

If you select Trigger a PATROL Event:

1.Select the type of PATROL event you wish to trigger when a storage problem occurs:

▪A STD 41 PATROL Event

▪A Specific PATROL Event (includes the alert origin — ApplicationClassName.ObjectID.ParameterName).

▪No Event

These events are generated every time a threshold is exceeded. They contain a full Storage Health Report detailing the fault that has occurred.

KMCmd_Alert_Actions_Event

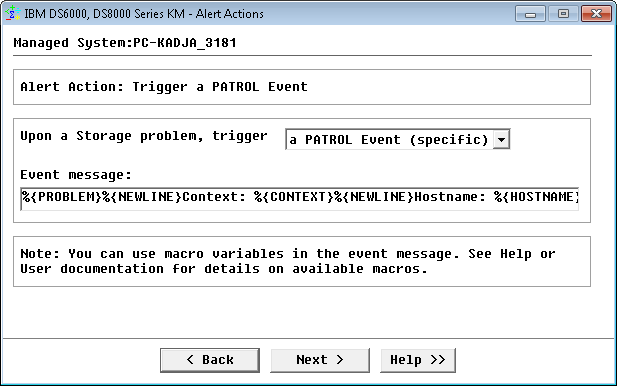

Editing Alert Actions — Alert Action: Trigger a PATROL Event

2.If needed, modify the event message. You can use alert action macros that will be replaced at runtime.

3.Click Next and Finish.

A PATROL Event can be viewed from:

•Standard PATROL Consoles (Classic Console, PATROL Central)

•PATROL Enterprise Manager

•BMC Impact Manager

•Other third-party products that interface with PATROL.
