Adding a Connection to an IBM XiV Storage Manager

 Home  Previous  Next

To add a connection to an Enterprise Manager:

1.Right-click the IBM XiV KM Icon > KM Commands > Add a Connection to an IBM XiV Storage Manager...
2.Define the provider information:
▪Enter the storage system host name
▪Enter the IP address or the fully qualified name.

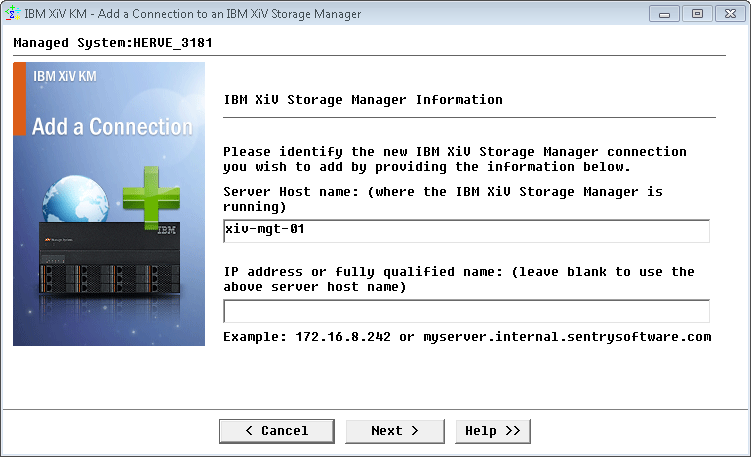

Add_Connection

Adding a connection to an IBM XiV Storage System — Storage System Identification

3.Click Next
4.Enter the credentials that the KM will use to access the IBM XiV storage system via the WBEM protocol:
▪Enter the Port number that will be used for the connection to the enterprise manager. By default, 5989.
▪Enter the Username and Password that will be used for the WBEM connection.

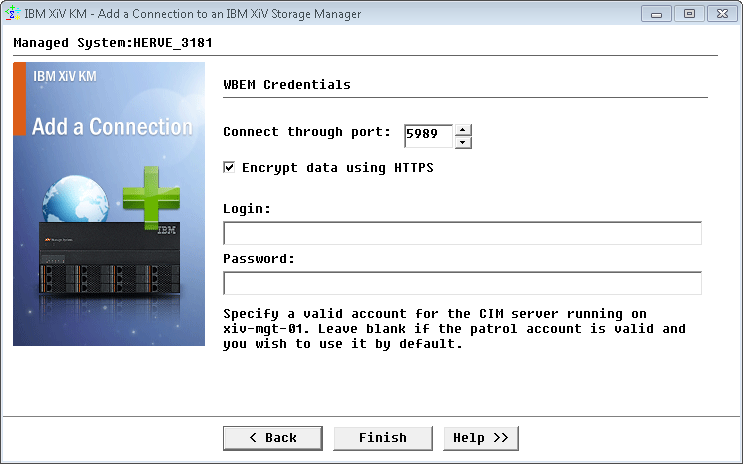

Add_Connection_Credentials

Adding a connection to an IBM XiV Storage System — Credentials

noteWhen the login and password are left blank the default PATROL credentials will automatically be used for the connection.

5.Click Finish to save your settings.
