Editing the NetApp Filer Connection Settings

 Home  Previous  Next

NetApp Filers KM for PATROL provides a wizard to help administrators configure NetApp Filers.

1.Right-click the monitored element > KM Commands > Edit Connection Settings.
2.Edit the Hostname of the NetApp Filer in C-Mode or the IP address of the first controller in 7-Mode.
3.(7-Mode only) Edit the Partner hostname or IP address of the second controller of the NetApp Filer.
4.Click Next to continue.

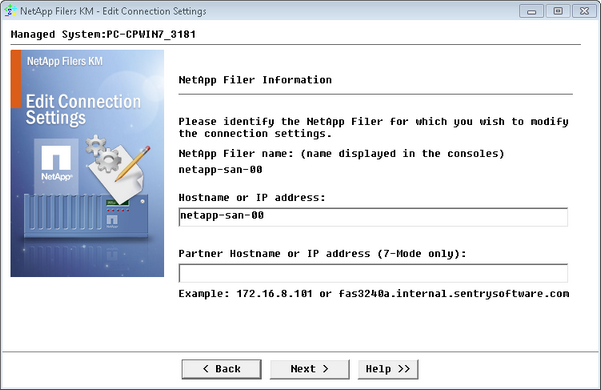

Edit_NetApp_Filer_Connection_Information

Editing Connection Settings - NetApp Filer Information

5.Edit the NetApp Filer credentials (Port, Username and Password) and click Finish to validate your changes.

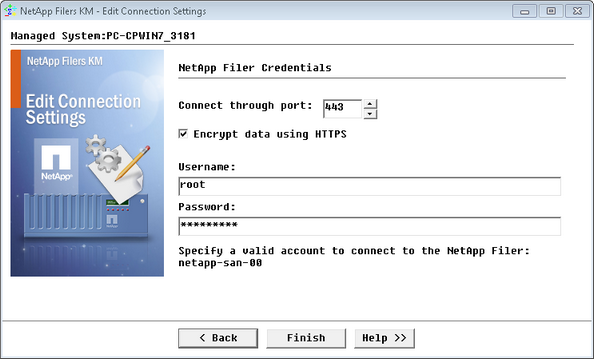

Edit_NetApp_Filer_Connection_Credentials

Editing Connection Settings - NetApp Filer Information



See Also

Adding a Connection to a NetApp Filer
