NetApp Filers KM for PATROL enables you to generate a report for one or several Ethernet ports:



1.Click the KM main icon > KM Commands > Reporting > Ethernet Ports Activity to access the report settings dialog box.

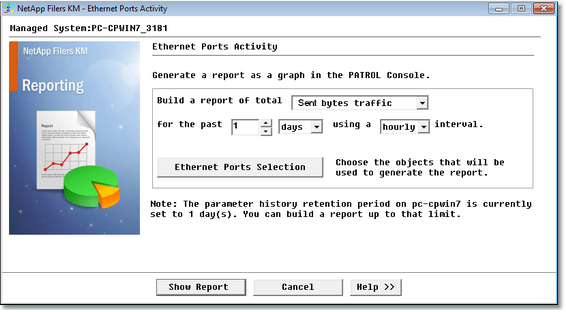

Reporting_Ethernet_Ports_Activity

Ethernet Ports Activity - Report Parameter Selection

2.Select the parameter for which you wish to generate a report.
3.Select the report range and interval.
4.Press the Ethernet Ports Selection button and select the specific Ethernet port(s) you wish to include in the report.
5.Click Show Report.
