FC Ports Activity

 Home  Previous  Next

NetApp Filers KM for PATROL enables you to generate a report for one or several FC ports:



1.Click the KM main icon > KM Commands > Reporting > FC Ports Activity to access the report settings dialog box.

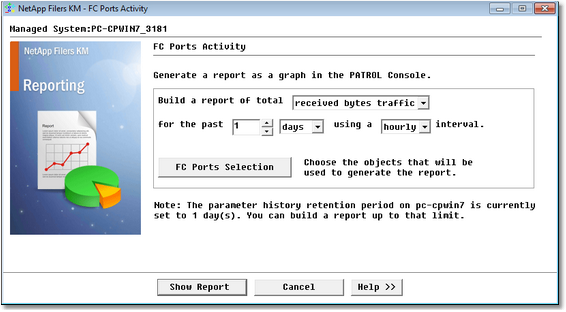

Reporting_FC_Ports_Activity

FC Ports Activity - Report Parameter Selection

2.Select the parameter for which you wish to generate a report.
3.Select the report range and interval.
4.Press the FC Ports Selection button and select the specific FC port(s) you wish to include in the report.
5.Click Show Report.
