Scheduling Reports

Administrators can schedule the production of activity reports and LUNs Mapping Table reports every day at a specific time.

To schedule reports:

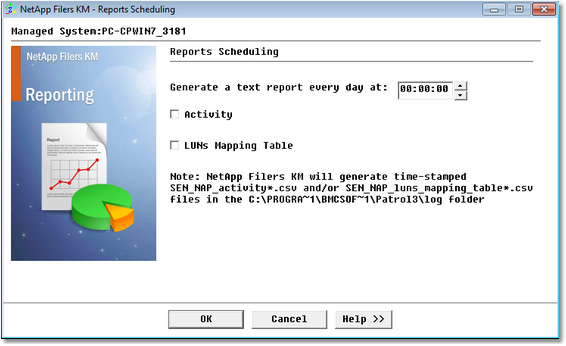

1.	Right-click the KM main icon > KM Commands > Reporting > Reports Scheduling. The Reports Scheduling wizard appears:

Cmd_ReportsScheduling

Scheduling Reports

2.	Specify the time when the reports are automatically generated.

3.	Check the Activity report type to automatically generate the following reports:

▪	Filers Activity

▪	Clusters Activity

▪	Nodes Activity

▪	Controllers Activity

▪	Ethernet Ports Activity

▪	FC Ports Activity

▪	Host Adapters Activity

▪	iSCSI Activity

▪	NVRAM Activity

▪	Vservers Activity

▪	vFilers Activity

▪	Volumes Activity

▪	LUNs Activity

4.	Select LUNs Mapping Table to list mapped and unmapped LUNs.

Click OK.

The generated file(s) are time-stamped and stored in %PATROL_HOME%\log for the specific time set through the History Retention Period parameter.

The history retention period can be set from the PATROL Console or from the PATROL Agent using a configuration variable. The default collection (retention) period is one day. Whenever a stored parameter value exceeds its retention period, it is automatically deleted from the parameter history file. Refer to BMC documentation for details.
