Configure Veritas File System KM

Configuring VxFS Nodes Monitoring

Veritas File System KM allows you to monitor several VxFS systems with one PATROL Agent. The configuration procedure is as follows:

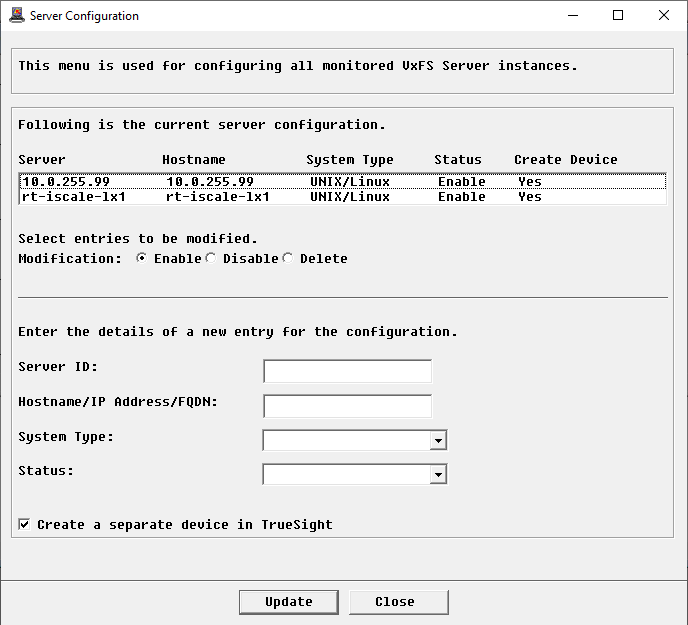

1. Right-click the Veritas File System main instance > Configuration > VxFS Nodes…



2. Specify the VxFS system details:

   • Node ID: Enter an ID for the VxFS node. This information is only required if a unique ID cannot be generated using the hostname provided.
   • (Required) Hostname/IP Address/FQDN: Enter the hostname, IP address, or FQDN of the node to be monitored.
   • (Required) System Type: Select UNIX/Linux for the VxFS system type, since VxFS does not support Windows platforms.
   • (Required) Status: Select Enable to start the VxFS node monitoring; Disable to stop it.

3. Check the Create a separate device in TrueSight box if you want the VxFS nodes to appear as a separate device in TrueSight OM.

4. Click Update.

A VxFS Setup node instance (VxFS Setup: <node-id>) appears in the PATROL Console but the monitoring will not start until the appropriate credentials are entered using the Configuration > Login KM Command.

Configuring the KM User Account

A user account with administrative privileges must be configured in BMC PATROL or BMC TrueSight Operations Management to read and execute Veritas File System application programs and access file systems. Depending on the operating systems used, several options will be available. For more information, refer to Security Requirements.

To configure the KM user account:

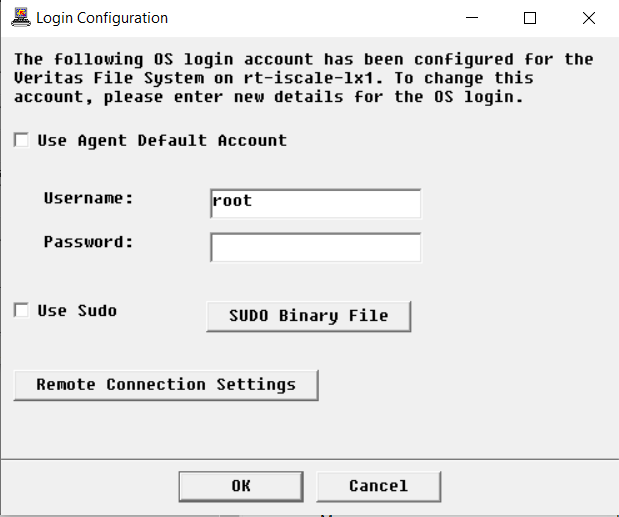

1. In the Console, right-click the host instance > KM Commands > Configuration > Login… The Login Configuration dialog box is displayed:



2. To use:

   • the default PATROL Agent Account, check the Use Agent Default Account box and leave the Username and Password fields empty
   • a different user account, enter the login details in the Username and Password fields

3. If a sudo user account is used:

   • check the Use Sudo box
   • click SUDO Binary File to verify the sudo binary file path

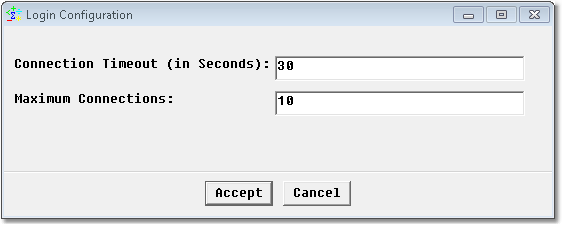

4. If you are monitoring a remote host, click Remote Connection Settings:



   • Connection Timeout (in Seconds): Enter the number of seconds after which the connection to the remote node will timeout.
   • Maximum Connections: Enter the maximum number of simultaneous connections allowed to the remote node.
   • Click Accept.

5. Click OK.

If the credentials are not valid, the VFSLoginStatus parameter will appear in “suspicious state” after the next data collection.

Verifying the Application Discovery

To verify the application discovery:

1. Check that the VxFS Setup instance changes to display the server type. If not, check the message in the VxFS Setup instance and in the PATROL Console System Output Window (SOW) or in the log file <PATROL_HOME>/log/VFS_<port>.log. You can force a full discovery by right-clicking the VxFS Setup instance > KM Commands > Force Discovery.

2. Check that the application class instances are actually instantiated. The initial data collection may take some time depending on the complexity of your environment (up to one hour). If needed, force a data collection by right-clicking the server instance > KM Commands > Refresh Parameters.

If Veritas File System system is configured in a clustered environment, you will have to enable multi-node mode monitoring.

Configuring the Instance Limits

By default, Veritas File System KM monitors all the elements discovered, which may represent an important workload to the PATROL Agents and console. Because the monitoring of some elements may be irrelevant for various reasons, you can apply filters to indicate which elements will be monitored or not.

To modify the default configuration:

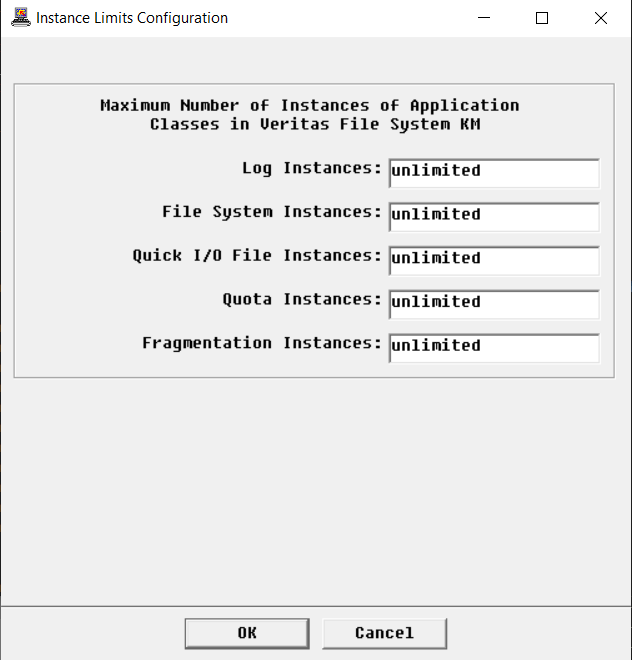

1. In the Console, right-click the server instance > KM Commands > Configuration > Instance Limits…



2. Enter the number of instances to be displayed in the console for each monitored element

3. To disable the monitoring of a specific application class, enter 0 (zero) in the relevant field
4. Click OK.

Verifying the Initial Setup

To check the initial setup of the KM:

1. Check for any error on the PATROL Console System Output Window (SOW) or in the <PATROL_HOME>/log/VFS_<port>.log.

2. Check whether the discovered files and directory paths are correct, using the menu Configuration > Paths… from the server instance.

3. Refer to the label of the server instance to check whether the discovered node type is correct. The node type can be modified, using the menu Configuration > Node Type… from the server instance.

4. Check the Infoboxes and Parameters of all the Veritas File System KM instances and verify that they are properly set.

5. Under each container instance, open all detail parameters (text parameters with names in the format VFS<Object>Details), and check for error messages.

6. Check the new value of the VFSLoginStatus and VFSNodeStatus parameters set after the completion of all data collection. If either is not in OK state, open the annotation point to determine the cause of the error.

7. After the KM has been running for at least an hour:

   • Right-click the server instance > KM commands > KM Status… from the Veritas File System instance. A report is displayed, detailing information on the managed system. Check through the report for any warning or alarm. If any error is found during any of the above steps (including any incorrect data in Infoboxes or any warning or alarm in the KM Status report), determine the cause(s) and take steps to resolve these errors. You may need to refer to the User Guide, or contact Technical Support, attaching the KM Status report.
   • If needed, click Save As Task to open the report in a task window. You could later save it as a text file or print it.

8. The KM automatically discovers and monitors all components of the VxFS node. You can disable monitoring selected components by setting their instance limit to 0 (zero), using the menu Configuration > Instance Limits….

Restarting PATROL Agent and PATROL Console

Restarting the PATROL Agent and PATROL Console is optional but often a good practice to confirm that the Veritas File System KM operates correctly.

In addition, the PATROL Agent restart will force all KM discoveries and data collections to start immediately.

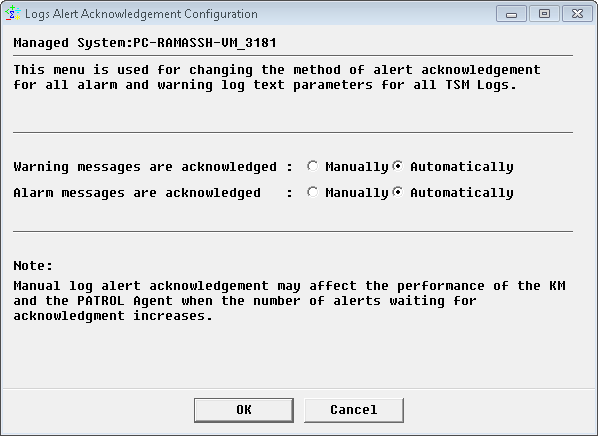

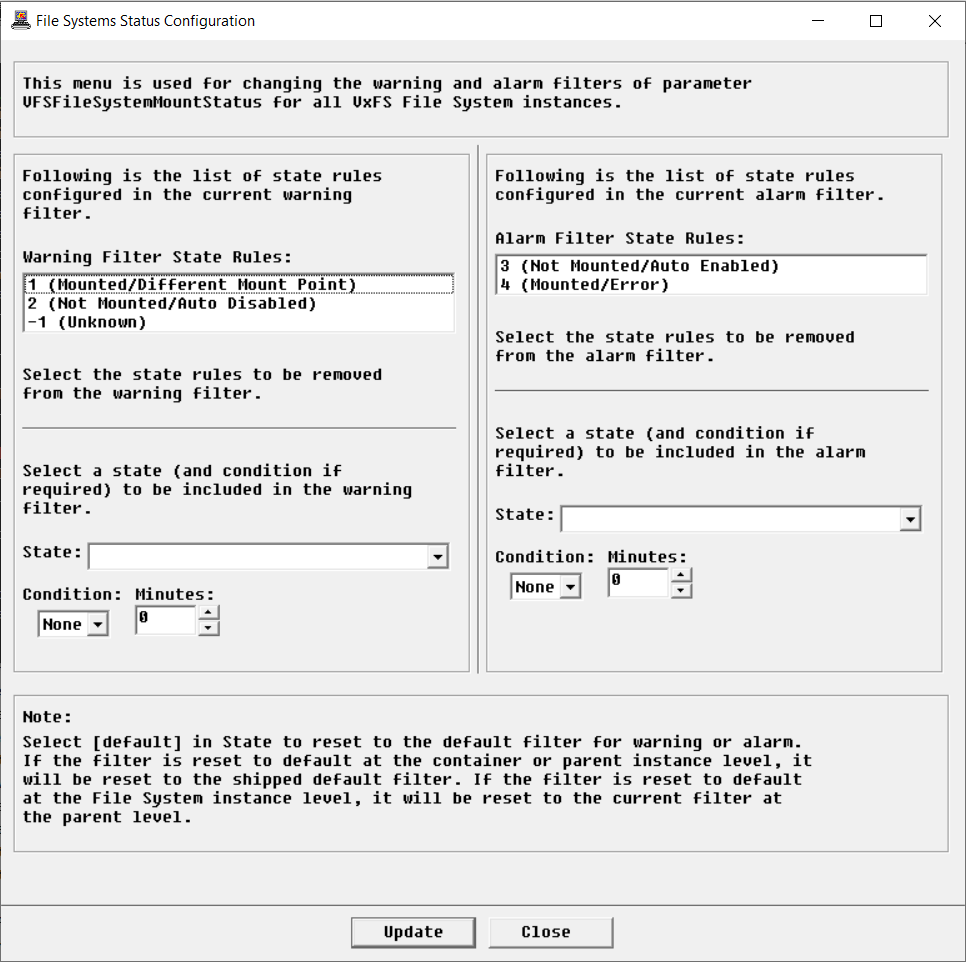

Configuring Alerts

Configuring the Discovery Overrides

The solution automatically discovers the installation, binary, and library paths. This information can however be overridden.

To configure paths:

1. In the Console, right-click the server instance > KM commands > Configuration > Paths…

2. In the KM section, verify and possibly modify the Home, Temp, and Debug Directory Paths

3. In the VxFS section, verify and possibly modify the Installation and the Remote Temp Directory (remote nodes only) Paths

4. In the Binary Paths and Library Paths sections:

   • From the list, select the paths to be removed
   • In the Path field, enter the new path(s) to be included. If several paths are to be entered, separate them with a colon (:).

5. Click OK.

If you want to rediscover the paths, empty all fields, click OK, and restart the PATROL Agent.

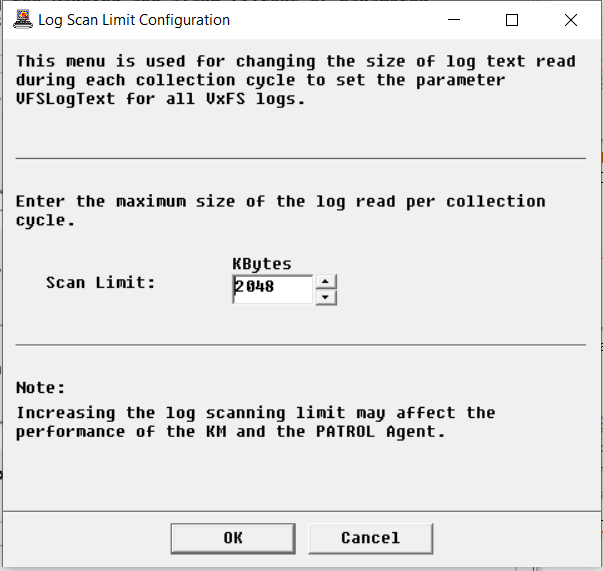

Configuring Logs

By default, the following system log and Windows event logs are monitored. These log file paths are relative to the VxFS installation directory (for example /opt/VRTSvxvm on UNIX and C:\Program Files\Veritas), unless the path is fully pathed.

Filtering Elements to Monitor

By default, the solution monitors all the discovered elements, which may represent an important workload to the agents and servers. Because the monitoring of some elements may be irrelevant for various reasons, you can apply filters to indicate which elements will be monitored or not.

To filter elements to monitor:

1. In the Console, right-click one of the following instances depending on the elements that you wish to monitor:

   • Logs > KM Commands Configuration > Logs… to filter logs to be monitored

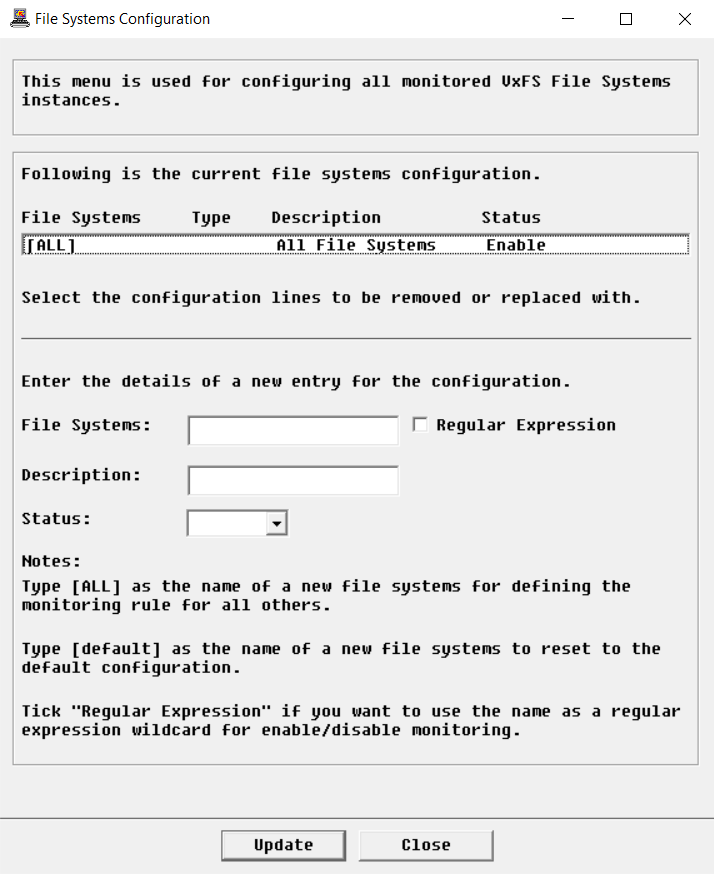

   • File Systems > KM Command > Configuration > File Systems… to filter file systems to be monitored
   • Fragmentations > KM Commands Configuration > Fragmentation… to filter fragmentations to be monitored
   • Quick I/O > KM Commands > Configuration > Quick I/O Files… to filter quick I/O files to be monitored
   • Quotas > KM Commands > Configuration > Quotas… to filter quotas to be monitored
   Note: These menus are also available from the child instances and will apply to all objects created under the child instances.



   The [ALL] entry ensures that all the elements found during PATROL discovery are instantiated and monitored.

2. To enable elements for monitoring:

   • In the current configuration list, select the elements to enable
   • Select Enable
   • Click Update

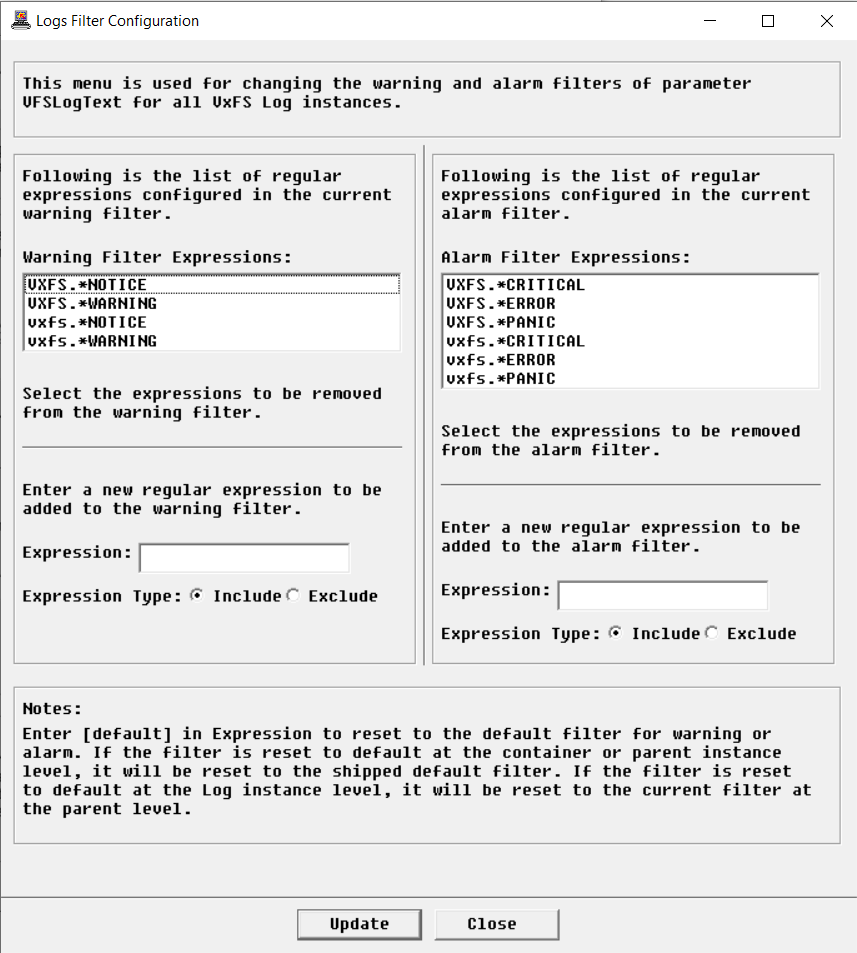

   A log filter will have to be configured if you enable log files for monitoring.

3. To disable elements for monitoring:

   • In the current configuration list, select the elements to disable
   • Select Disable
   • Click Update

   Disabled instances will be instantiated in an OFFLINE state. Commands will not be executed, thus leaving parameters not set.

4. To delete elements for monitoring:

   • In the current configuration list, select the elements to delete
   • Select Delete
   • Click Update

5. To add a new element to monitor:

   • Type the name of the element to be monitored (as it appears in the PATROL console) or a regular expression to be monitored
   • If needed, enter a description
   • From the Status list, select Enable
   • Click Update.

   To revert to the default monitoring configuration, type [default] as a new entry and click Update.

6. Resume the procedure for all the application classes for which you wish to apply monitoring filters.

Configuring the Multi-Node Monitoring Mode

When Veritas File System is installed in a cluster environment, i.e. active on one cluster node and passive on others, false alarms and duplicate alerts may occur. To avoid such situation, users need to configure Veritas File System KM for PATROL in multi-node monitoring mode, if VxFS is installed in a supported cluster.

To configure the multi-node monitoring mode:

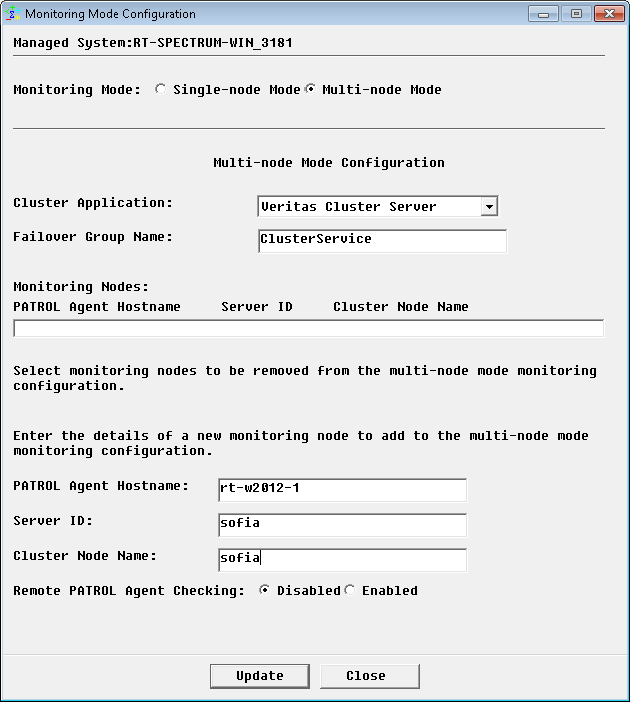

1. In the Console, right-click the server instance > KM Commands > Configuration > Monitoring Mode…



2. Select Multi-node Mode.

3. From the Cluster Application pull-down list, select an appropriate cluster application.

4. In the Failover Group Name field, enter the failover group name, which is online on one cluster node and offline on the others. Leave this field blank if you previously selected Veritas Cluster File System. The Veritas File System KM will then monitor the entire cluster from the active master system, which is identified by the vxdctl -c mode command. This method requires vxconfigd in enable mode with its clustered state active.

5. Provide the details of all managed nodes of the cluster to be configured in the multi-node mode:

   • PATROL Agent Hostname: host where the PATROL Agent is installed
   • Node ID: the unique ID of the VxFS node as configured in the KM menu Veritas File System instance > KM Command > Configuration > VxFS Nodes
   • Cluster Node Name: the hostname defined in the selected Cluster Application.

6. Click Update.

7. Resume the procedure for all the other VxFS nodes and click Update.

8. Check the Remote PATROL Agent Checking option if there are more than one PATROL Agent involved in the multi-node mode configuration above. If enabled, the KM queries the other PATROL Agents to check the monitoring status of other nodes.

9. Click Close.

10. If the Remote PATROL Agent Checking is Enabled, you will have to provide all the information required to communicate with the PATROL Agents (protocol, port number, credentials, attempts and timeout).

11. Click Close.

The VxFS server will then be monitored through the master or online node in Active Multi-node Mode. The other nodes, which are standing by for a failover, will be in Passive Multi-node Mode, monitoring only the components that are not visible from the active node.

If a managed node is unable to check the monitoring status of the active managed node, it will change to Temporary Single-node Mode allowing full monitoring. It will remain in Temporary Single-node Mode until it finds the active node in full monitoring mode again.

If the Remote PATROL Agent Checking is Disabled, while there are more than one PATROL Agent involved, the managed node on the master or online node will be in Active Multi-node Mode and all others will be in Passive Multi-node Mode, without checking the monitoring status of the active node. In addition, the above procedure to configure Multi-node Mode (server instance > KM Commands > Configuration > Monitoring Mode) needs to be repeated from each PATROL Agent involved.
