Monitoring volumes to find out if the amount of data processed is dangerously growing close to the volume's limit will help you not being caught short of space without warning.
To identify the volumes that generate the most traffic, you will need to create a simple one-row dashboard. Dashboards allow you to gather specific types of data and display them in a consolidated graphical format. For detailed information about dashboards options and features, refer to the BMC documentation.
To Identify Busiest Volumes
| 1. | Login to your BMC TrueSight Operations Management console. |
| 2. | Select Dashboards from the navigation pane. |
| 3. | In the Dashboards page, click Add Dashboard or select Add Dashboard from the dashboard action menu  . |
| 4. | Enter a Title for your dashboard and configure a Global Filter, if needed. |

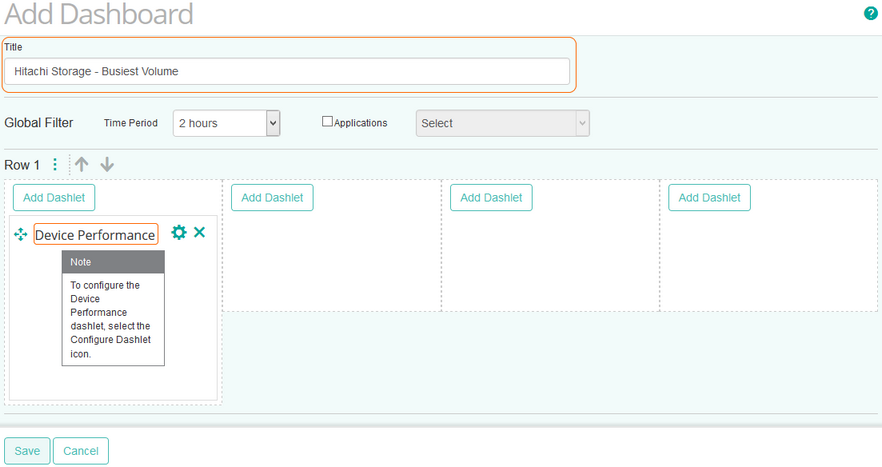

| 5. | Click Add Dashlet to open the dashlet library for the first column of the row. |
| 6. | From the dashlet library, select the Device Performance template, and then click Close. |
| 7. | Select Configure Dashlet by clicking the  button. |

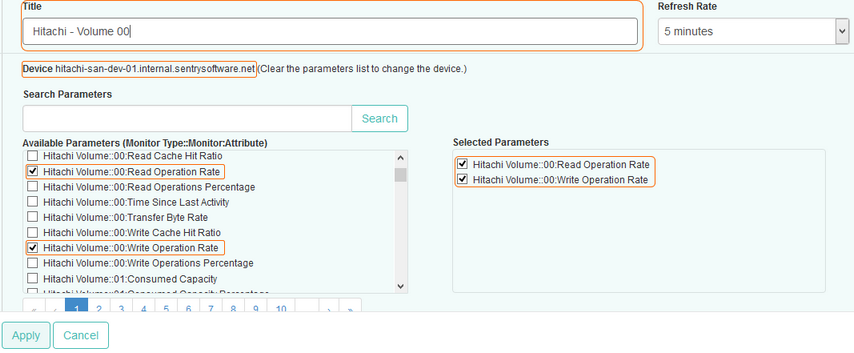

| 8. | In the panel of input fields and options that opens below the dashboard, enter a Title for the dashlet and specify a Refresh Rate (default is 5 minutes). |
| 9. | Select the Hitachi storage device for which you want to compare processors utilization. |
| 10. | Select the Read Operation Rate and the Write Operation Rate parameters for the first volume, and click Apply. |
Tip
To quickly retrieve a component or a parameter, enter its name in the Search Parameters field and click Search.
|
| 11. | Repeat this operation in the next column of the dashboard for other volumes and click Save. |

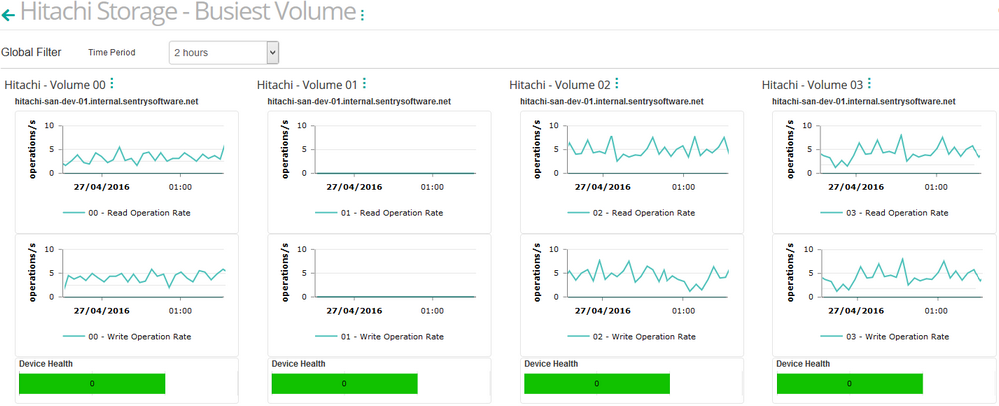

| 12. | The dashboard is completed and shows the Read Operation Rate and the Write Operation Rate for all the selected volumes. |
