Hitachi Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored controllers:
| 1. | Click the disk array/component instance > KM Commands > Reporting > Controllers Activity... |
| 2. | Set the report parameters |

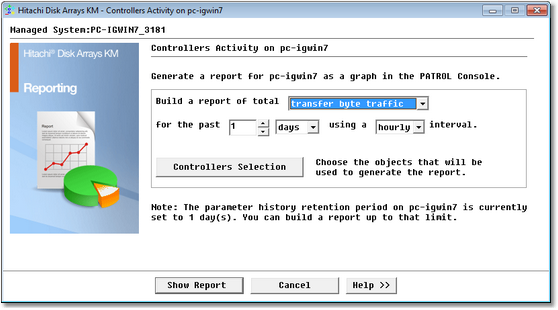

Defining Report Settings
| 3. | The transfer byte traffic parameter is automatically selected |
| 4. | Select the report range and interval |
| 5. | Press the Controllers Selection button and select the specific controller(s) you wish to include in the report (this option is only available when you access the activity report from the disk array) |

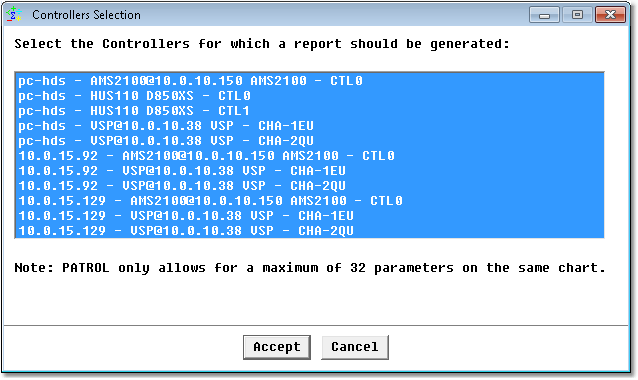

Controllers Selection
| 6. | Click Accept to continue |
| 7. | Click Show Report to display an activity report for the selected controller(s) according to the parameters you have defined. |

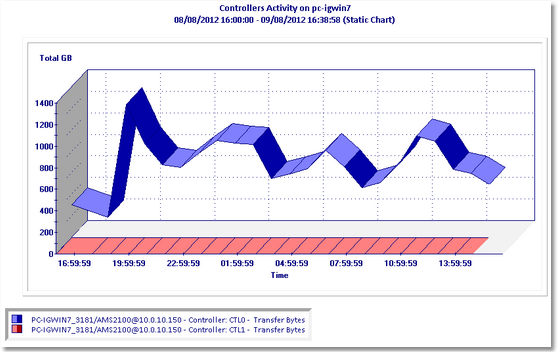

Controller Activity Report
You can also easily generate a report directly from a specific controller:
| 1. | Click the controller > KM Commands > Controller Activity. |
| 2. | Select the report range and interval |
|
