Hitachi Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored fiber ports:
| 1. | Click the disk array/component instance > KM Commands > Reporting > Fiber Ports Activity... |
| 2. | Set the report parameters |

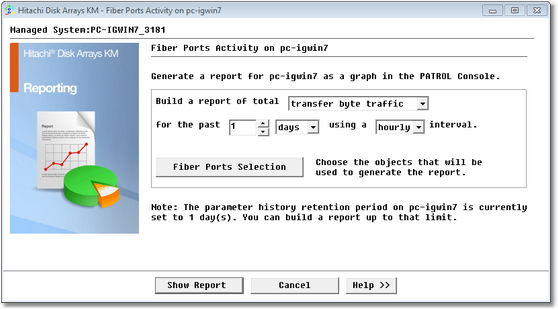

Defining Report Settings
| 3. | The transfer byte traffic parameter is automatically selected |
| 4. | Select the report range and interval |
| 5. | Press the Fiber Ports Selection button and select the specific port(s) you wish to include in the report (this option is only available when you access the activity report from the disk array) |

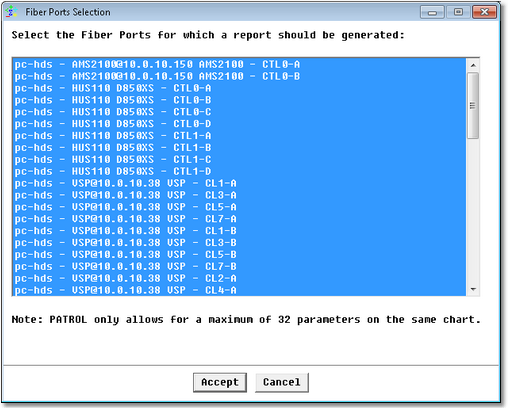

Fiber Port Selection
| 6. | Click Accept to continue |
| 7. | Click Show Report to display an activity report for the selected fiber port(s) according to the parameters you have defined. |

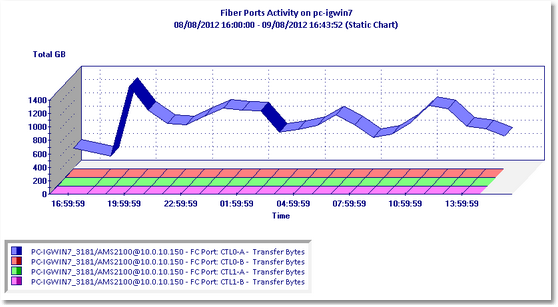

Fiber Ports Activity Report
You can also easily generate a report directly from a specific fiber port:
| 1. | Click the fiber port > KM Commands > Fiber Port Activity |
| 2. | Select the report range and interval |
|
