Hitachi Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored storage pools:
| 1. | Click the disk array/component instance > KM Commands > Reporting > Storage Pools Activity... |
| 2. | Set the report parameters |

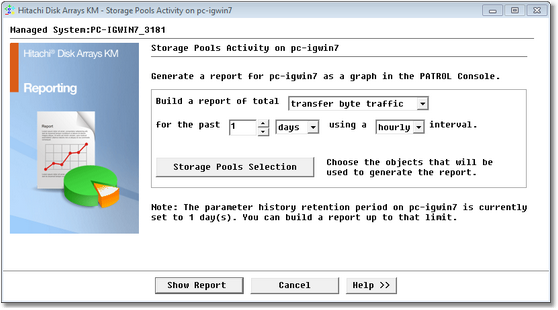

Defining Report Settings
| 3. | The transfer byte traffic parameter is automatically selected |
| 4. | Select the report range and interval |
| 5. | Press the Storage Pools Selection button and select the specific storage pool(s) you wish to include in the report (this option is only available when you access the activity report from the disk array) |
| 6. | Click Accept to continue |
| 7. | Click Show Report to display an activity report for the selected storage pool(s) according to the parameters you have defined. |

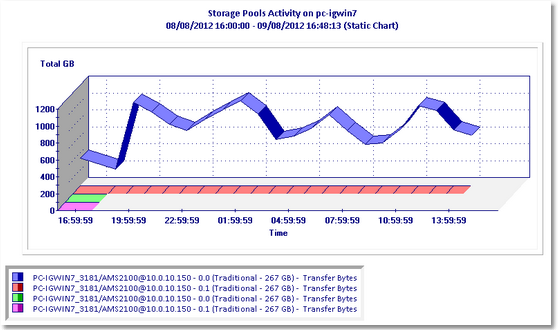

Storage Pools Activity Report
You can also easily generate a report directly from a specific storage pool:
| 1. | Click the storage pool > KM Commands > Storage Pool Activity |
| 2. | Select the report range and interval |
|
