Hitachi Disk Arrays KM for PATROL enables you to generate a report for one or several of the monitored volumes:
| 1. | Click the disk array/component instance > KM Commands > Reporting > Volumes Activity... |
| 2. | Set the report parameters. |

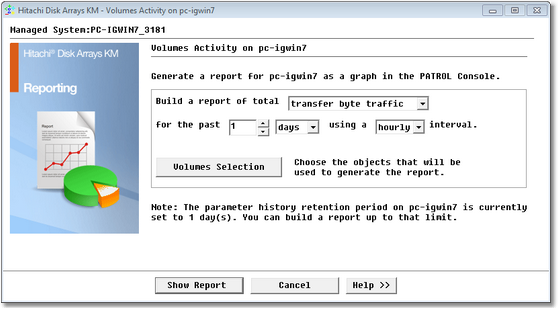

Defining Report Settings
| 3. | The transfer byte traffic parameter is automatically selected |
| 4. | Select the report range and interval |

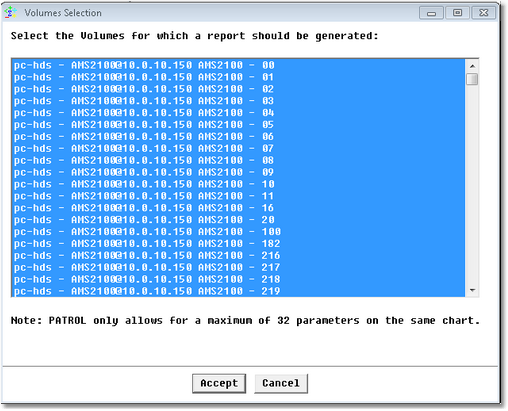

| 5. | Press the Volumes Selection button and select the specific volume(s) you wish to include in the report (this option is only available when you access the activity report from the disk array) |
Fiber Port Selection
| 6. | Click Accept to continue |
| 7. | Click Show Report to display an activity report for the selected volume(s) according to the parameters you have defined. |
You can also easily generate a report directly from a specific volume:
| 1. | Click the volume > KM Commands > Volume Activity |
| 2. | Select the report range and interval |
|
