Installing IBM DS6000, DS8000 Series KM for PATROL is an automated process managed by a wizard. The wizard goes through the necessary steps to install the KM and all files associated with it. You are simply prompt for the product's folder location and the product/components to install.

importantIBM DS6000, DS8000 Series KM for PATROL must be installed on a server that has access to the IBM Storage Manager.

Browse to the bmc_products folder where the files have been extracted (both IBM DS6000, DS8000 Series KM for PATROL and the Common Installer).

On Windows: Launch the setup.exe program

On UNIX: Launch the setup.sh script

To install IBM DS6000, DS8000 Series KM for PATROL

1.Allow the perl.exe program listen on this port: Click Allow access.

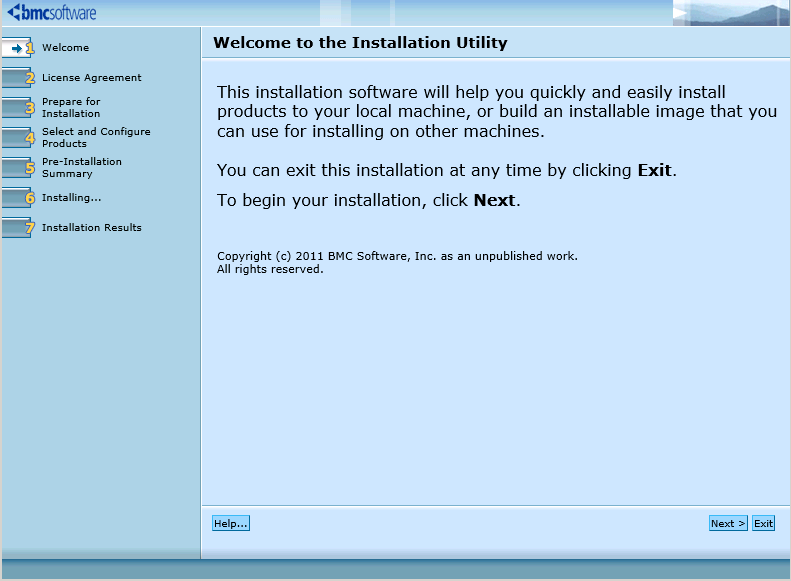

2.The Welcome screen of the installer appears. Click Next to continue.

Install_Welcome

Installation Wizard - Step 2: Welcome

3.Read the license agreement, click the Accept option and then click Next to continue.

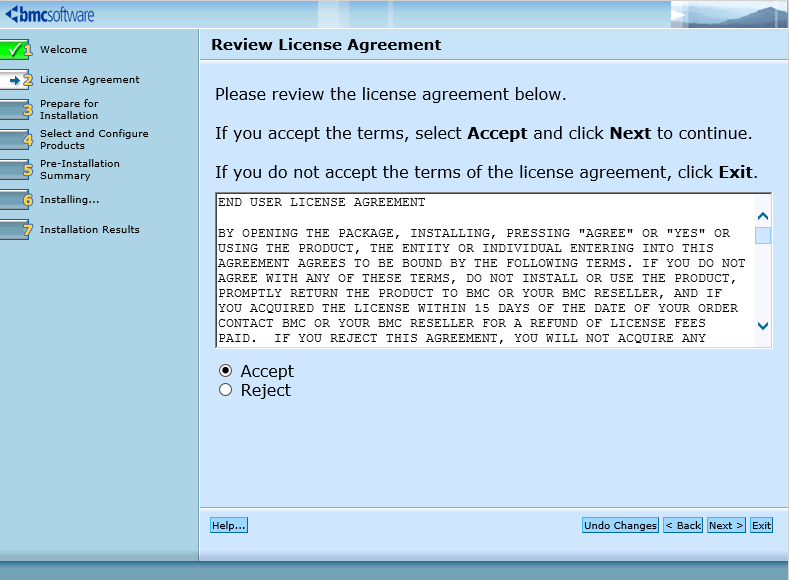

Install_License

Installation Wizard - Step 3: Accepting License Agreement

4.Select Install products on this computer now and click Next to continue.

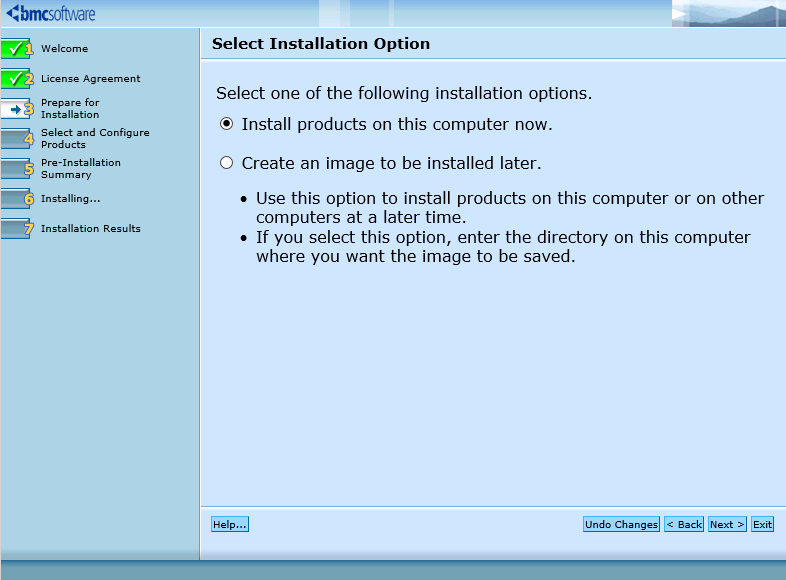

Install_Installation_Options

Installation Wizard - Step 4: Selecting Installation Options

5.Specify the BMC Software products folder. See the BMC Software documentation for more information about the BMC Software products folder.
Click Next to continue.

Install_Installation_Directory

Installation Wizard - Step 5: Selecting the Installation Directory

6.Select the Default option. Installing IBM DS6000, DS8000 Series KM for PATROL does not require any customization.
Click Next to continue.

Install_Installation_Type

Installation Wizard - Step 6: Selecting an Installation Type

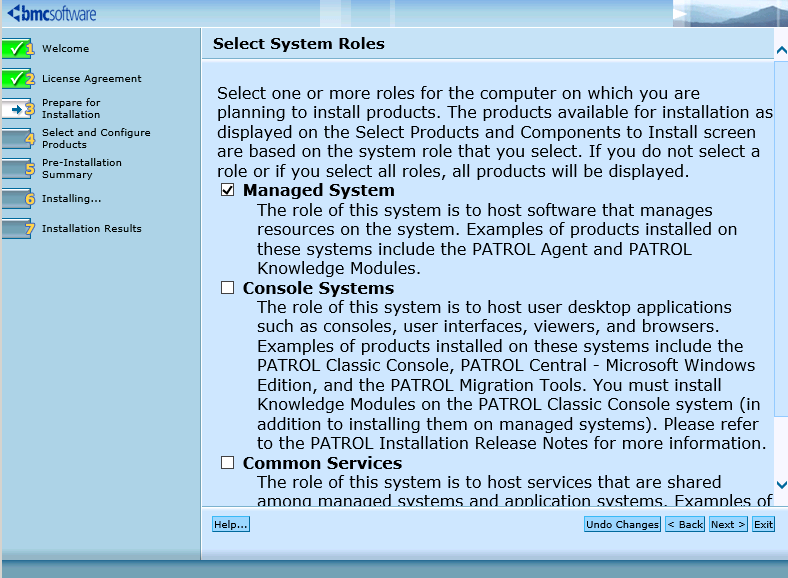

7.Select one or several of the following options:

Managed System to install IBM DS6000, DS8000 Series KM for PATROL on a PATROL Agent.

Console Systems role to install IBM DS6000, DS8000 Series KM for PATROL on a PATROL Classic Console.

Common services to install IBM DS6000, DS8000 Series KM for PATROL on the Console Server or on PATROL Central – Web Edition.

Click Next to continue.

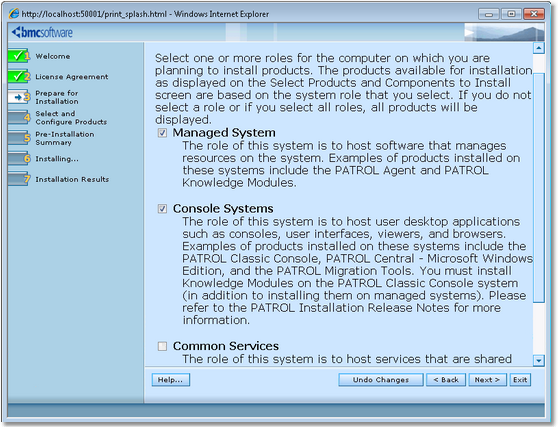

Install_System_Roles

Installation Wizard - Step 7: Selecting Roles

8.Check the IBM DS6000, DS8000 Series KM for PATROL box to install the KM (it should be selected by default).
Select the Java Runtime Environment program if you want to install it along with the KM (this option is only provided when you have previously downloaded the package).
Click Next to continue.

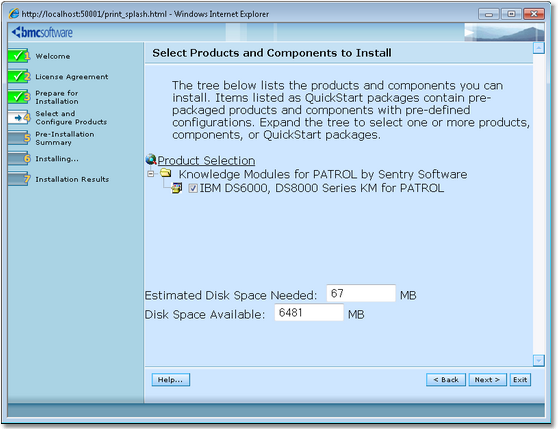

Install_Products_Components

Installation Wizard - Step 8: Selecting Products and Components

9.Review the installation parameters and click Start Install to launch the installation procedure.

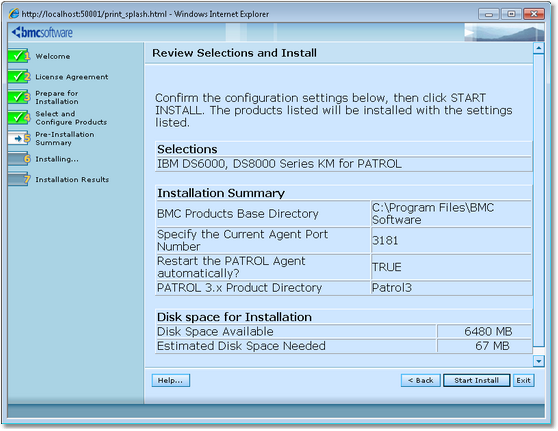

Install_Review_Selection

Installation Wizard - Step 9: Reviewing Installation Options

10.The setup program displays the actions performed and indicates the percentage of completion.
Once the installation complete, click Next to view the installation results.

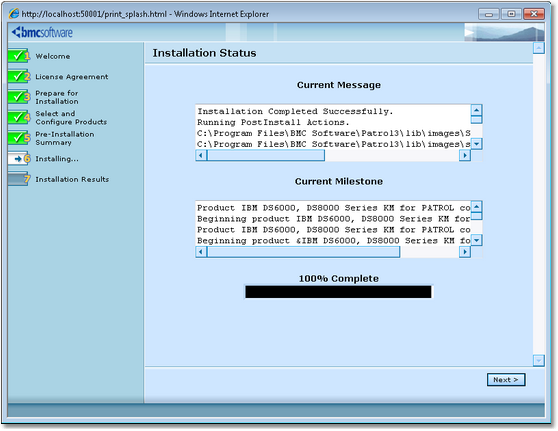

Install_Complete

Installation Wizard - Step 10: Installation Status

11.The wizard displays the installation results.
Click View Log to display a detailed log of the installation procedure.
Click Next and then Finish to exit the setup program.

Install_Success

Installation Wizard - Step 11: Installation Results

12.  Press the Finish button to complete and close the installation wizard.

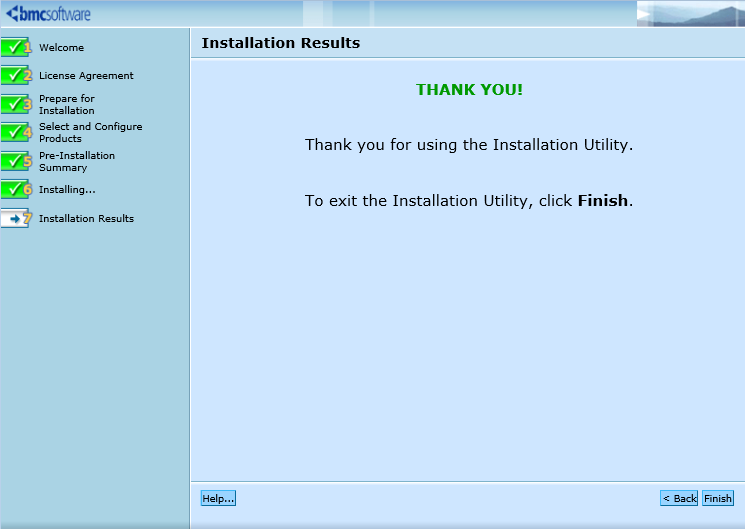

Install_Thanks

Installation Wizard - Step 12: Completing and closing the Installation Wizard

TipA Help button in available at each step of the procedure. Click to display the installation online help. The Exit button allows you to stop the installation procedure.
