Advanced Extensions

Internal Architecture

Before extending Monitoring Studio X, you need to understand its internal architecture and how the Web interface works.

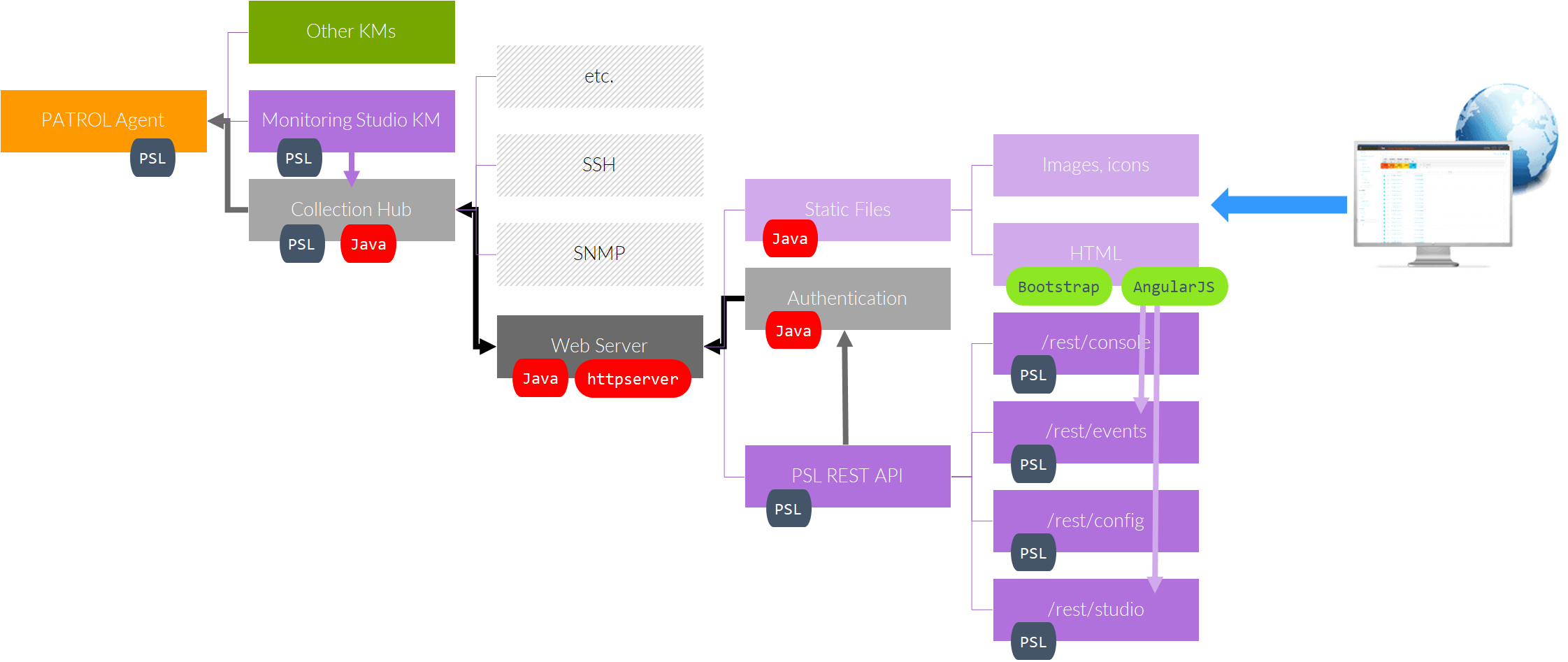

Monitoring Studio X starts an HTTP server through its Java Collection Hub. This HTTP server is configured to serve 2 types of resources:

• Static files (typically HTML, CSS and JS, but also debug files for example)
• REST API endpoints, in the form of PSL functions executed on the PATROL Agent to respond to HTTP requests

To summarize, the Monitoring Studio X Web application is made of static HTML, CSS and JS files where the JS code makes HTTP requests to the REST API, which is made of PSL functions executed on the PATROL Agent.

Interactive UI with AngularJS

The front-end of Monitoring Studio X is developed with AngularJS 1.x (not to be confused with the most recent Angular). To extend the Web interface of Monitoring Studio X, you must first understand how AngularJS works. It is strongly recommended to have a good expertise in AngularJS before working on Monitoring Studio X extensions.

When extending Monitoring Studio X, the main steps are:

1. Declare and implement additional REST API endpoints in PSL that will be invoked by the Web interface to interact with your KM
2. Declare an AngularJS module
3. Create an AngularJS service that implements methods that query your REST API endpoints
4. Create components that implement parts of your UI
5. Declare routes in $routeProvider that map URLs to your main components

Declaring REST API Endpoints in PSL

In Monitoring Studio X, the REST API backend is implemented in PSL. For example, a specific PSL function is invoked when the user browser requests the /rest/agent URL. The functions called on specific URL requests are called endpoints.

You may declare endpoints from your KM's PSL libraries. Endpoints are PSL functions that are called when specific HTTP requests are made to the HTTP server of Monitoring Studio X.

To declare your own endpoints, you need to set the /<class>/X_httpMapPsl namespace variable. The X_httpMapPsl variable must be set to a PSL list formatted as below:

set("/<class>/X_httpMapPsl", [
    "<url>;<PSL library>;<PSL function>",
    ...
]);

where:

• <class> is one of your KM's class. This is where this information is stored. The KM's main class is typically used.
• <url> is the URL for which the specified PSL function will be invoked. All requests on this URL and its sub-resources (“subdirectories”) will trigger the execution of the specified PSL function.
• <PSL library> is the name of the compiled PSL library which contains the code of the specified PSL function.
• <PSL function> is the name of the PSL function to execute when the specified URL is requested. This function must be exported in the specified compiled PSL library.

Example (from Storage Analyzer KM):

set("/SKM_MAIN/X_httpMapPsl", [
  "/rest/skm;SKM_restapi;swRestApi"
]);

Notes:

• The X_httpMapPsl namespace variable can be set with a list of multiple REST API endpoints.
• You do not need to set this namespace variable for every class of your KM. You must set /<class>/X_httpMapPsl on only one class that will be loaded and activated.
• The PSL script that sets this namespace variable must be the pre-discovery script of a class of your KM, to ensure it is executed before the discovery of Monitoring Studio X.

export function restEndpointExample;
function restEndpointExample(method, path, query, headerList, requestBody, username, remoteAddress, readOnly) {

  # Only supported method is GET
  if (method == "GET") {
    return [
      200,
      "Content-type: application/json; charset=utf-8",
      "\n",
      "{ \"result\": \"An example\", \"success\": true, \"time\": ".time()." }"
    ];
  }

  # For any other method, return 400 Bad Request
  return [
    400,
    "Content-type: application/json; charset=utf-8",
    "\n",
    "{ \"result\": \"Bad request\", \"success\": false, \"time\": ".time()." }"
  ];

}

psl -l restLibraryExample.psl

# Map /rest/example to restEndpointExample
set("/EXAMPLE_CLASS/X_httpMapPsl", [
  "/rest/example;restLibraryExample;restEndpointExample"
]);

$ curl -k https://localhost:3443/rest/example
{ "result": "An example", "success": true, "time": 1583351013 }

$ curl -k https://localhost:3443/rest/example/sub-example/1
{ "result": "An example", "success": true, "time": 1583351045 }

$ curl -k -X POST https://localhost:3443/rest/example
{ "result": "Bad request", "success": false, "time": 1583351070 }

requires X_restapi_utils;

Exposing Additional Web Resources (HTML, CSS, JS)

When extending the Web interface for your KM, you will need to expose your front-end code (JS, HTML, CSS and images) to the user browser.

From the PSL code of a KM, you can configure the HTTP server of Monitoring Studio X to serve the content of a directory, a ZIP or a JAR file, under a specified “virtual” folder.

This is achieved by setting the /<class>/X_httpMapResources namespace variable during the pre-discovery. The value of X_httpMapResources is a PSL list with each line containing an entry to map:

<virtual folder>;<path to resource>

Example of PSL script:

set("/SW_MAIN/X_httpMapResources", [
  "/swsy;./lib/SW_web.jar"
  "/swsy/help;./lib/SW_help"
]);

Notes:

• Path to the resource can be a directory, a ZIP or a JAR file
• Path to the resource is relative to $PATROL_HOME (except if the specified path is absolute)
• In the above example, an HTTP request to https://localhost:3443/swsy/index.html returns the content of index.html in $PATROL_HOME/lib/SW_web.jar.
• In the above example, an HTTP request to https://localhost:3443/swsy/help/css/bootstrap4.min.css returns the content of $PATROL_HOME/lib/swsy/help/css/bootstrap4.min.css
• You do not need to set this namespace variable for every class of your KM. You must set /<class>/X_httpMapResources for only one class that will be loaded and activated.
• The PSL script that sets this namespace variable must be the pre-discovery script of a class of the KM, to ensure it is executed before the discovery of Monitoring Studio X.

Loading JS and CSS

For the Web interface to leverage additional JS and CSS code of your own, it is necessary to ensure the JS and CSS files are loaded by the browser.

To do so, you will declare such resources in the /<class>/X_browserLoad namespace variable. The X_browserLoad variable contains a PSL list of resource paths that will be loaded dynamically by the browser when the user connects to the Web interface, as in the example below:

set("/SW_MAIN/X_browserLoad", [
    "/swsy/js/swsy-service.js",
    "/swsy/components/swsy-config/swsy-config.js",
    "/swsy/components/swsy-config/swsy-config.css"
]);

Notes:

• Paths are virtual paths, i.e. accessible by the browser through Monitoring Studio X's Web server.
• While not recommended, absolute URLs are supported and can reference CDNs for common resources (like Bootstrap, jQuery, Angular, etc.).
