Operate in TSPS

Viewing the HP Data Protector Device in TrueSight

The HP Data Protector system will appear as a separate device in the TrueSight Devices view.

1. Log on to the TrueSight console

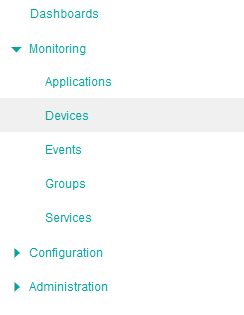

2. In the navigation pane, expand Monitoring and select Devices



3. Customize the Device Filter to display all your Devices

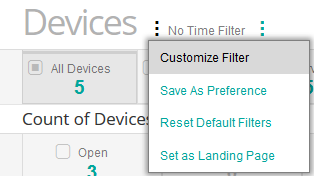

   • Click the action button next to the Devices title and click Customize Filter

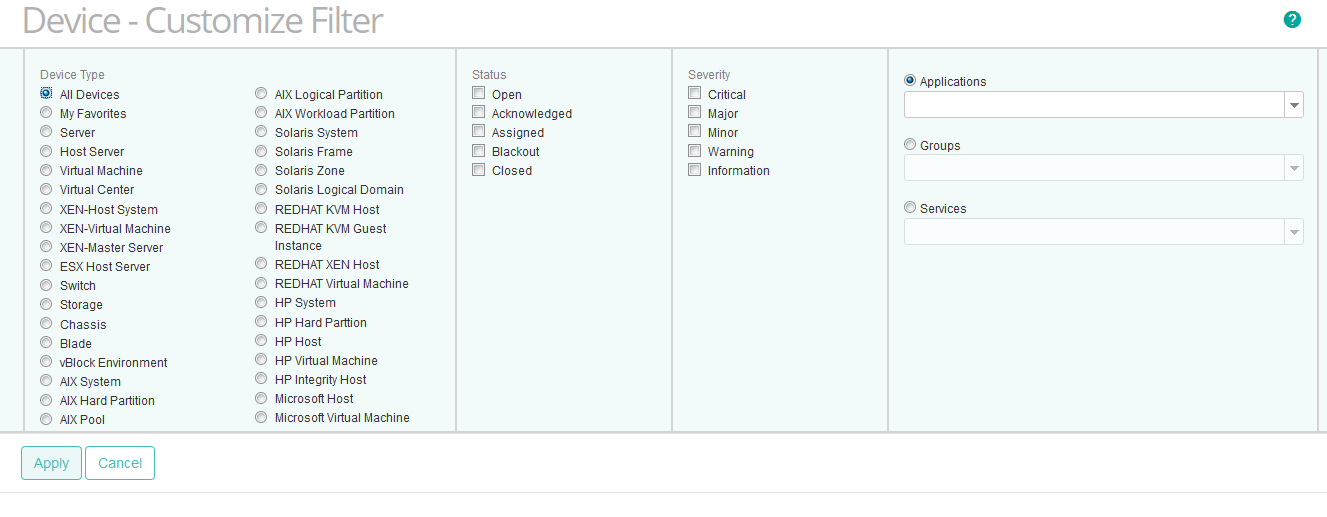

   • Select All Devices and click Apply

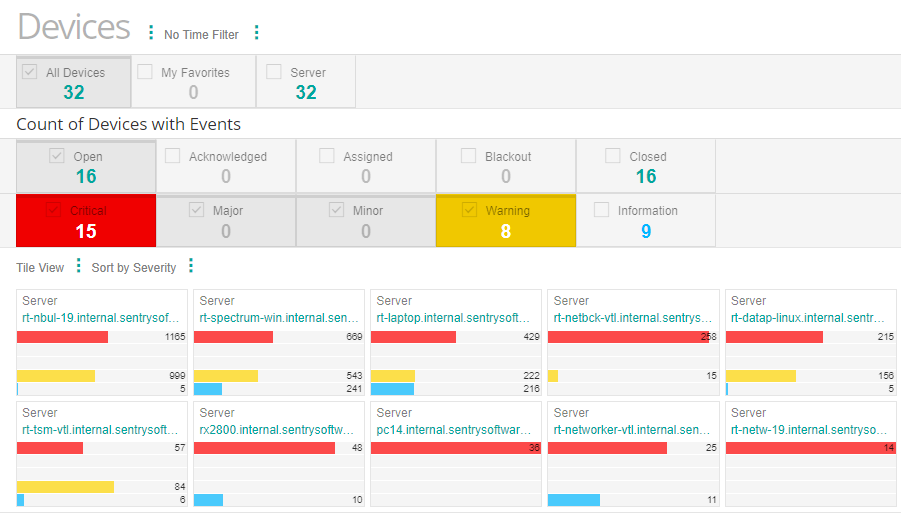

4. Click the HP Data Protector device. In our example, rt-datap-linux



5. Expand the HP Data Protector Monitor to display all its instances.

6. Double-click the attribute of your choice to display the graph.

Viewing the Events Triggered

To display all the events that are associated with the HP Data Protector device:

1. View the HP Data Protector Device in TrueSight

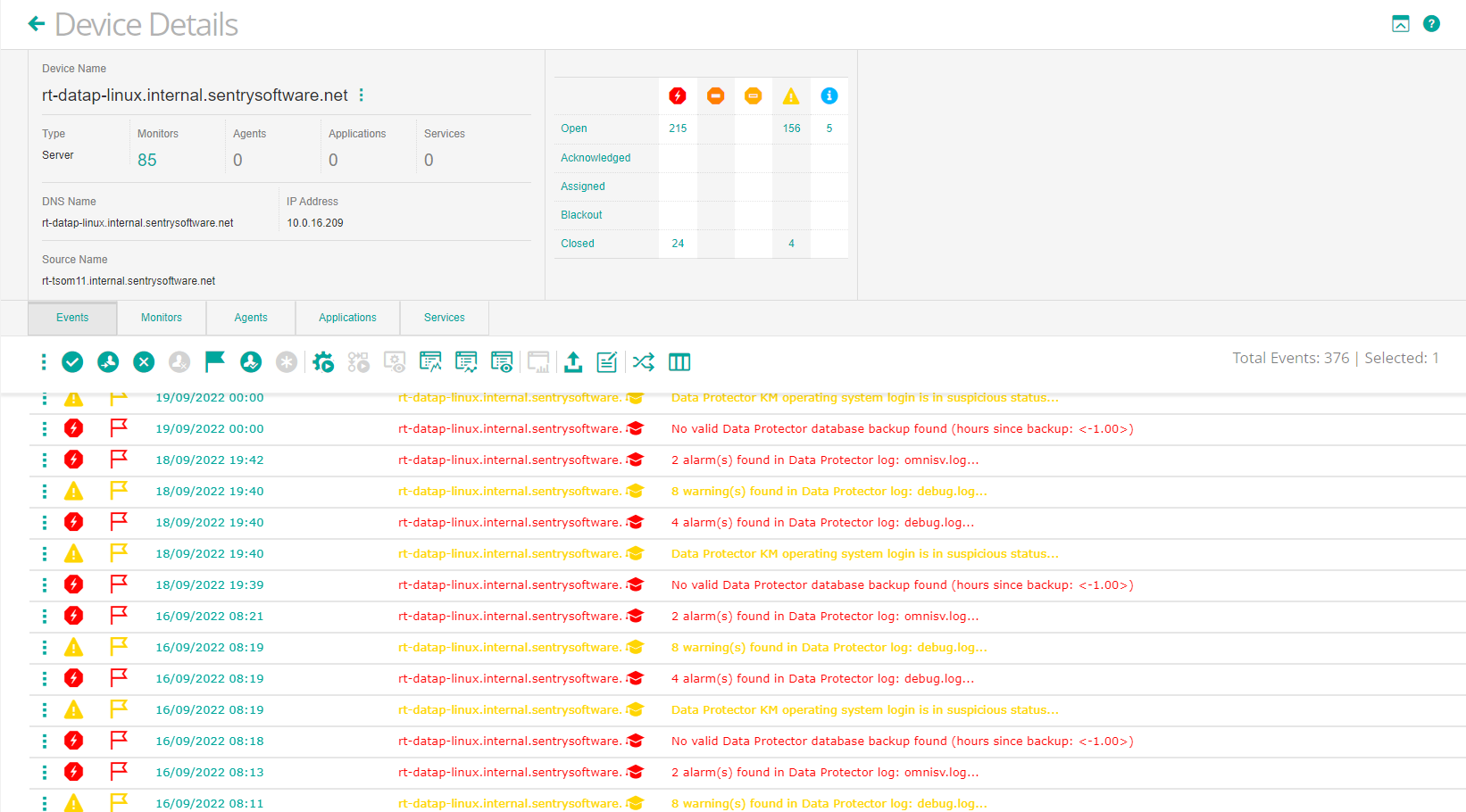

2. Click the Events tab.



Creating Dashboards

BMC TrueSight Operations Management provides dashboards to create consolidated and customized views of your monitored IT environment. Dashboards are built from dashlet templates. Once you have selected the dashlet that corresponds to the type of view you wish to create, you can access a specific type of data and present it graphically.

HP Data Protector KM monitors your HP Data Protector environment to ensure it runs efficiently 24 hours a day. The data is available through different dashlets to allow you to create a clear view of your HP Data Protector environment within a private or shared dashboard. Refer to the BMC TrueSight documentation to learn how to create dashboards.
